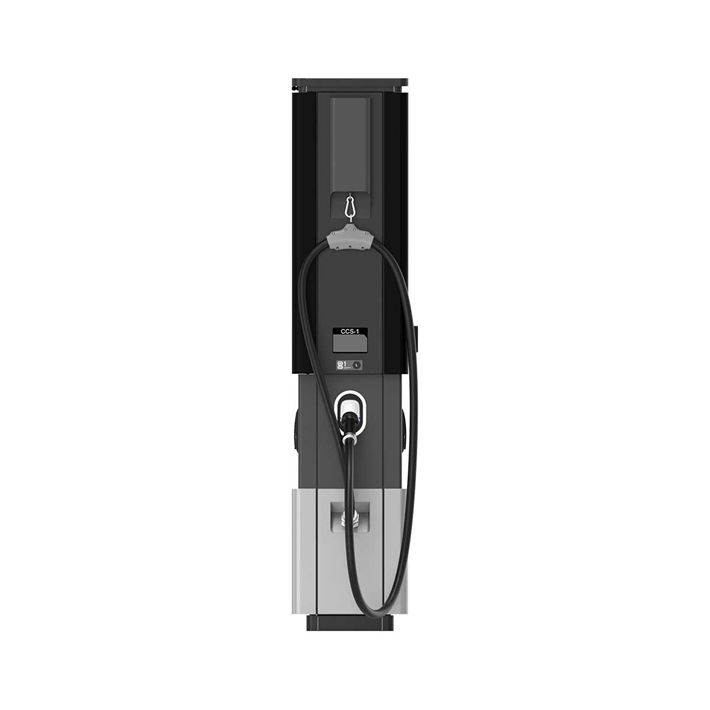

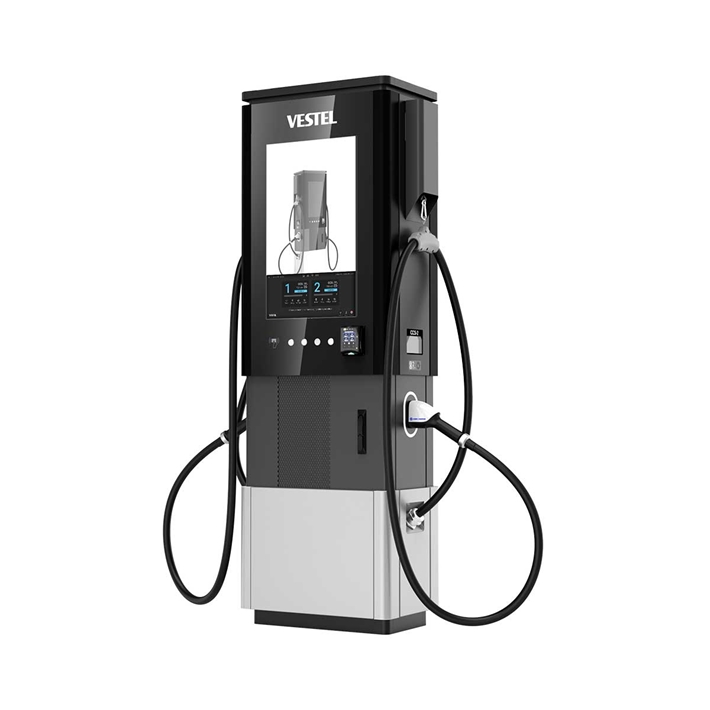

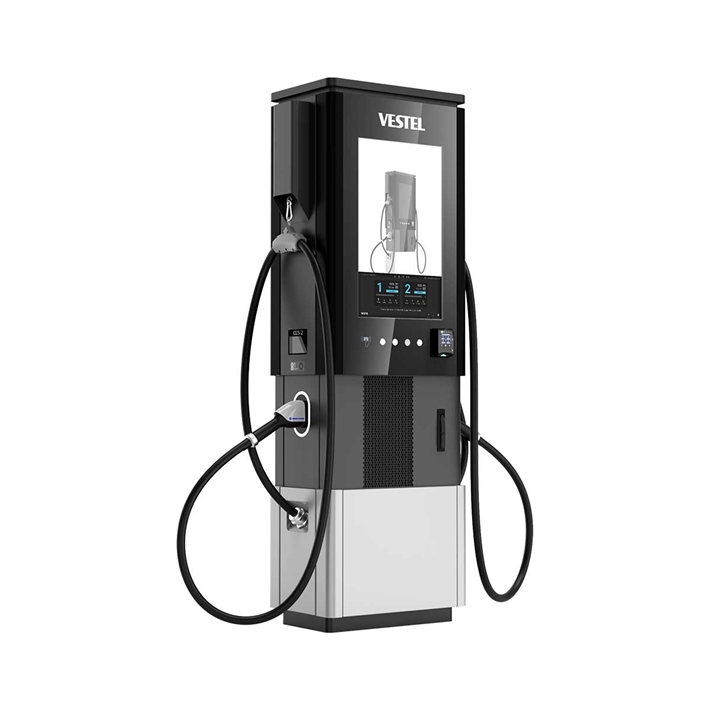

DC Stella 720
Distribute 720 kW of power to sockets in the most efficient way, taking up less space
DC Stella 720
Distribute 720 kW of power to sockets in the most efficient way, taking up less space
Charging up to 720kW with continuous 750A Liquid Cooled Cable Option
Online via cellular, Ethernet, Wi-Fi
DC Charging of double electric 8 vehicles with single dispenser by using 1 power cabinet,
Connection to CPMS via OCCP 1.6j &2.0 upgradable,
Credit Cart Reader
Option for advertising
Powerful charging, minimal footprint:
DC Stella 720 efficiently charges heavy EVs like trucks and buses—perfect for fleet depots and urban areas with space constraints.
Seamless interface, added value:
A 27” display ensures smooth navigation, supports ads for extra revenue, enables multiple payments, and complies fully with AFIR and accessibility standards.
Effortless reach, ergonomic design:
Advanced cable management and an ergonomic holder make long-distance charging easy and comfortable—optimizing every interaction.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Max. charging output per charge point | 4 Dispenser and 8 outlet, (Max 720 kW with 80 kW granulanity) |
| Charging connector | Single or Dual CCS2 Outlet with liqiuid cool cable up to 750A |
| Protection class | IP 54, IK 10 |
| Connectivity | Wi-Fi, LAN, 4G/ 5G |
| IT backend connection | OCPP 1.6J |
| Meter | MID meter (Option), Eichrecht compatible |
| Energy-/load management | Via OCPP |
| Authorisation | RFID, Credit Card Terminal(Option), OCPP |
| User Interface | 27'' Display with advertisement |
| Credit Card Reader | Optional (Nayax, Payter Apollo options) |
| Cable Management | Optional |
| Dimensions in mm (HxWxD) | 2040 x820 x 825 |
| Environmental operating temperature | -35 °C to +50 °C |
