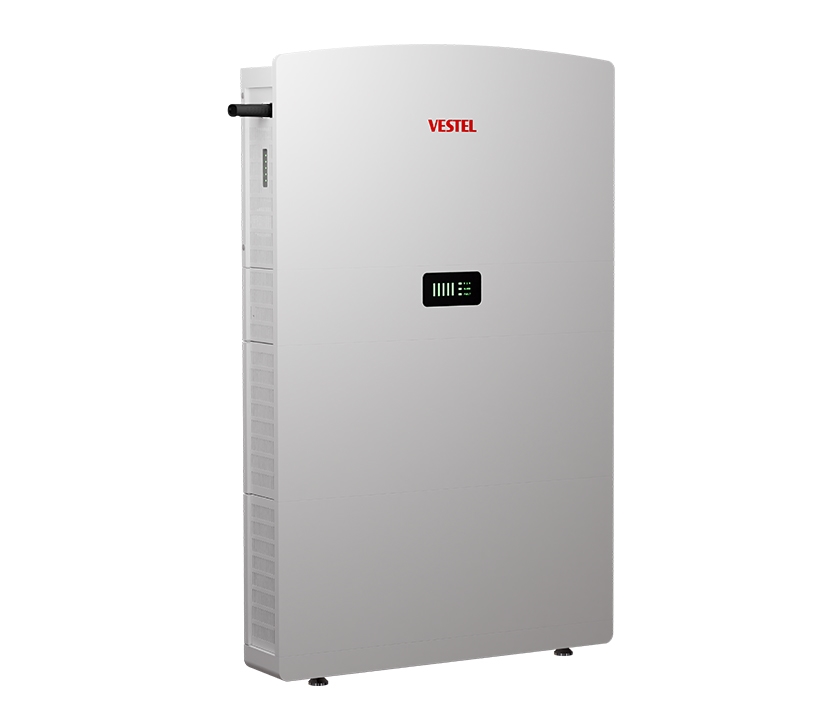

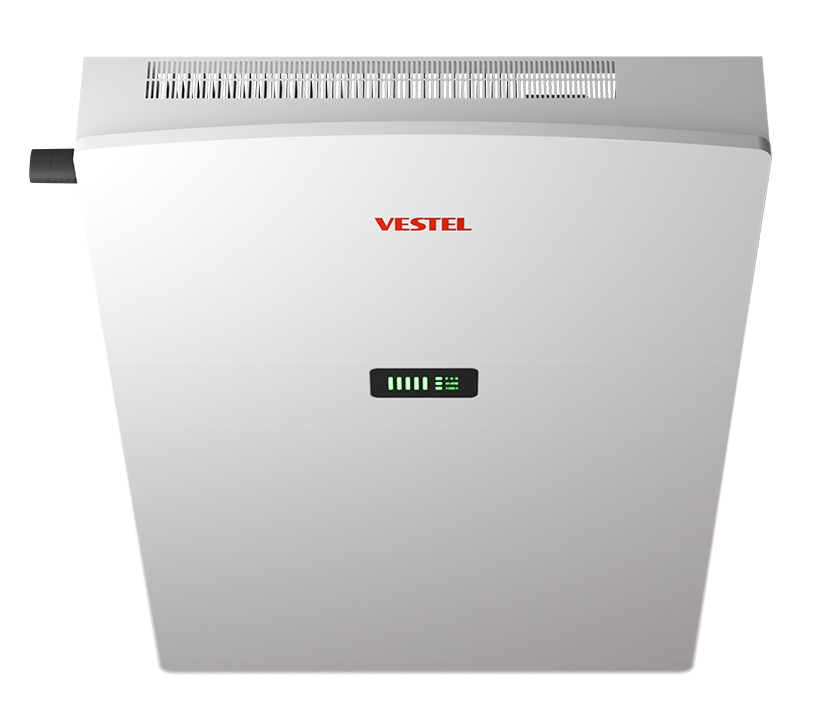

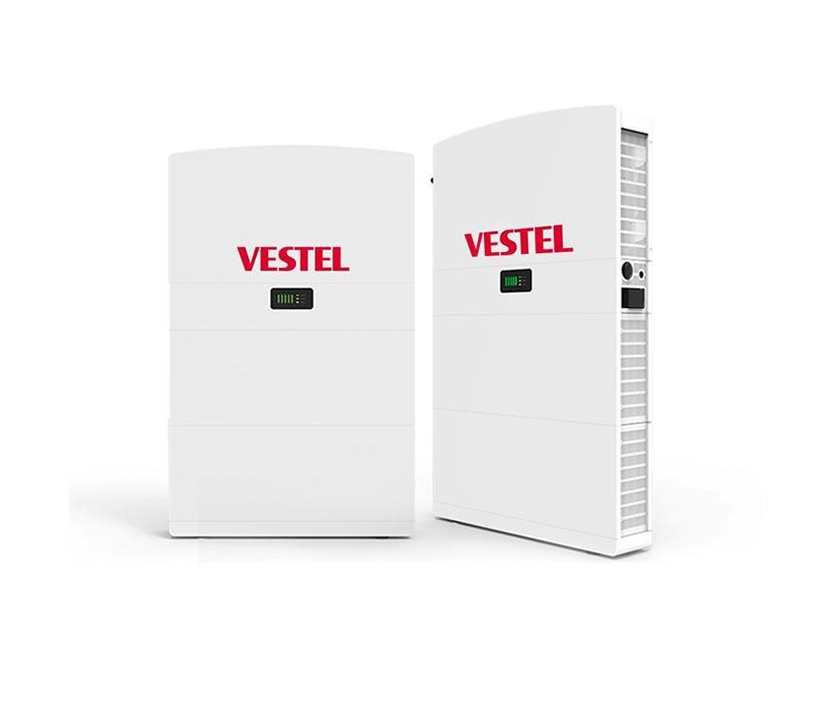

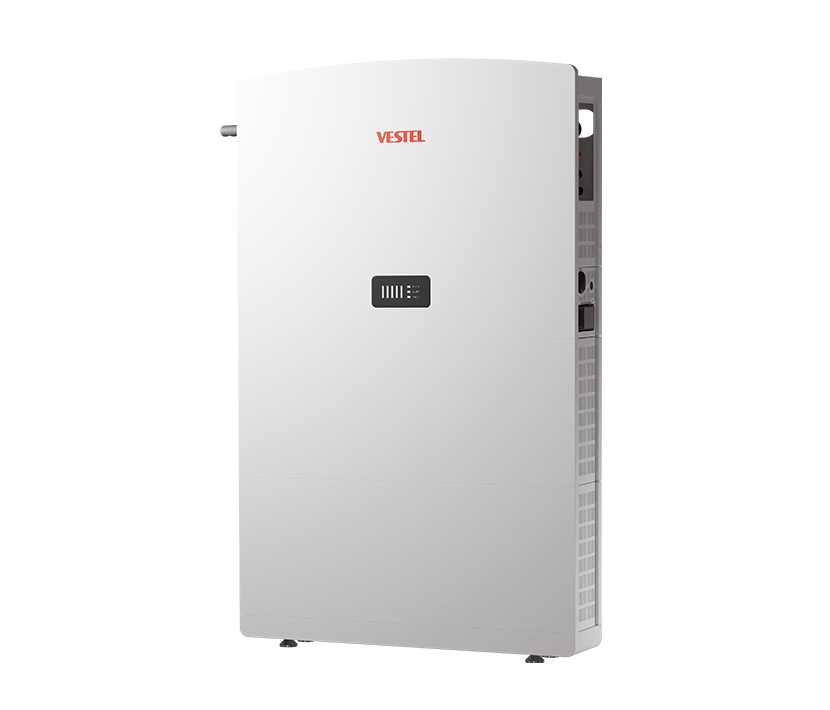

All In One Residential Battery
Designed for home usage, easy and quick installation, all in one modular design, trace all energy over mobile app, connect directly to PV panels without any extra inverters.
All In One Residential Battery
Designed for home usage, easy and quick installation, all in one modular design, trace all energy over mobile app, connect directly to PV panels without any extra inverters.
Compact design offering capacity options from 5 kWh to 30 kWh
2,5kW to 15kW inverter options in a cabinet
0,5C charge and discharge current support Both single and three phase options
PV panel integration with MPPT in cabinet Mobile app support
TECHNICAL INFORMATION
TECHNICAL INFORMATION
VOLTAGE RANGE
| No. of Phases | Single Phase - Three Phase |
| Protection Class | Class I |
| Uninterrupted Power Supply (UPS) | Yes |
| Max. Discharge Power | 15 kW |
BATTERY MODULES
| Nominal Voltage | 102,4 - 409,6 V |
| Moduler System | Yes |
| Max. System Capacity | 30 kWh |
| Module Capacity | 5 kWh |
| Module Weight | 55 kg |
| Max. Charge Power (System) | min 2,5 kW up to 15 kW |
| Max. Discharge Power (System) | min 2,5 kW up to 15 kW |
| Operating Temperature | -20-55 °C |
Certifications
| Thermal Runaway | UL9540A |
| EMC | IEC/EN 61000-6-1/-2/-3/-4 |
| Inverter Safety | IEC62109-1/-2 |
| Embedded SW | UL1998 |
| Solid State Devices | UL1991 |
| Transportation | UN38.3 |
| R-ESS Safety | VDE-AR-E2510-50 |
| Lithium System Safety | IEC62619 |
| Grid Codes - VDE-AR-N-4105 | Yes |
OTHERS
| Mobile App Support | Yes |
| Remote SW Update (OTA) | Yes |
| Installation Type | Wall Mount |
| System Dimensions (for 10kWh) | 840x800x160 mm (10kWh 3Phase) |
| Connectivity | Wifi, Ethernet |
| Communication Protocols | Modbus, RS485, CAN |
| System Warranty | 5 years |
