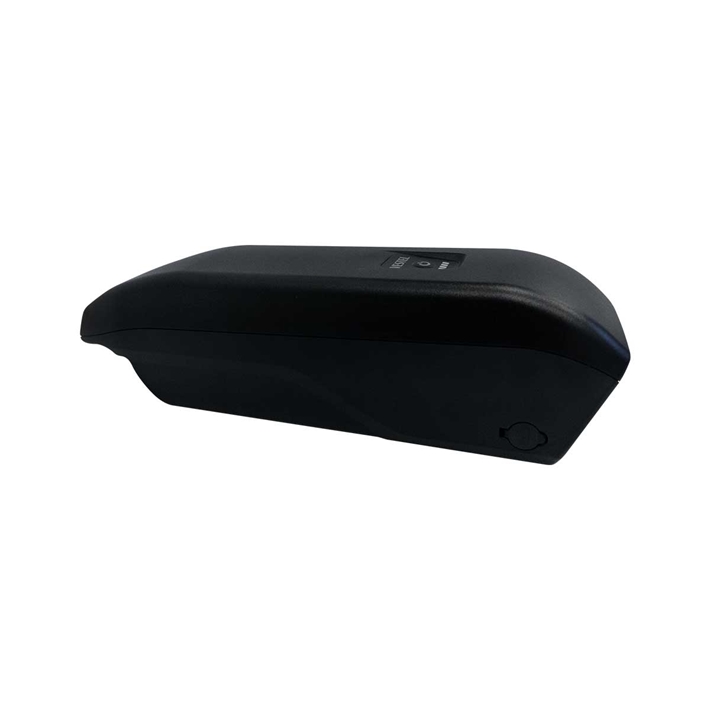

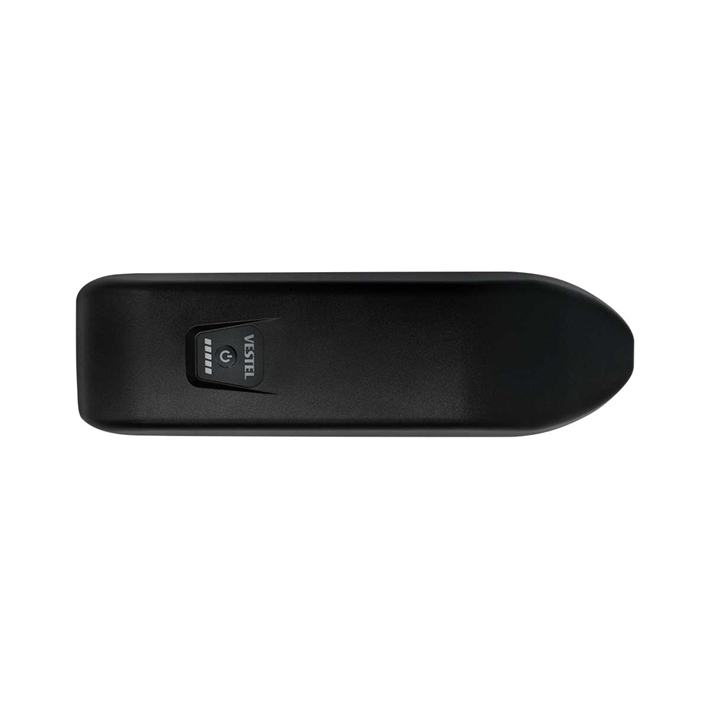

DT01 Downtube Battery
Positioned on the downtube, DT01 blends clean frame integration with 540 Wh high-density power, fast charging, and CAN-bus connectivity—built for long-range performance and off-road strength.
DT01 Downtube Battery
Positioned on the downtube, DT01 blends clean frame integration with 540 Wh high-density power, fast charging, and CAN-bus connectivity—built for long-range performance and off-road strength.
Different mounting options like rear carier downtube or in frame. Different capacities from 360Wh to 540Wht
Easy monitoring via mobile app over BLE
EN50604 certified
Reliable with laser welding technology
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Nominal Voltage | 36V |
| Capacity | 540 Wh |
| Cells | 21700, 5Ah /5.3Ah |
| Battery Pack | 10S3P |
| Charge Connector | 5A (min 3000cycles) |
| Discharge Connector | 25A (min 2500 cycles) |
| Weight | 2,8kg |
| Dimensions (mm) | 331*95*87 |
| Communication Protocols | CAN, UART |
| Indicators | 5 LED's |
| IP Level | IP66 |
| Mobile App Support | over Bluetooth |
| Other Features | Leaser Welding |
| Certifications | EN50604-1, UN38.3, IEC62133-2 |
| Warranty | 3 years or 1.000 cycles |
