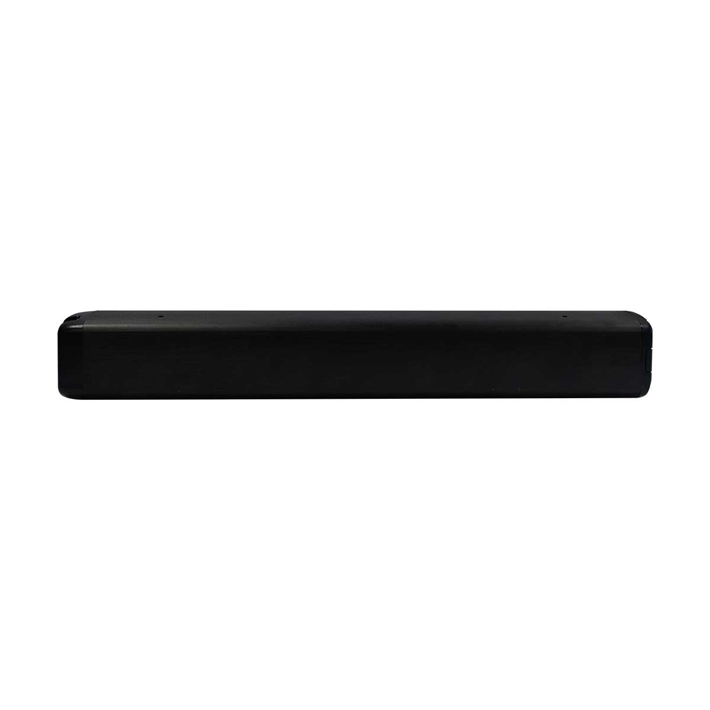

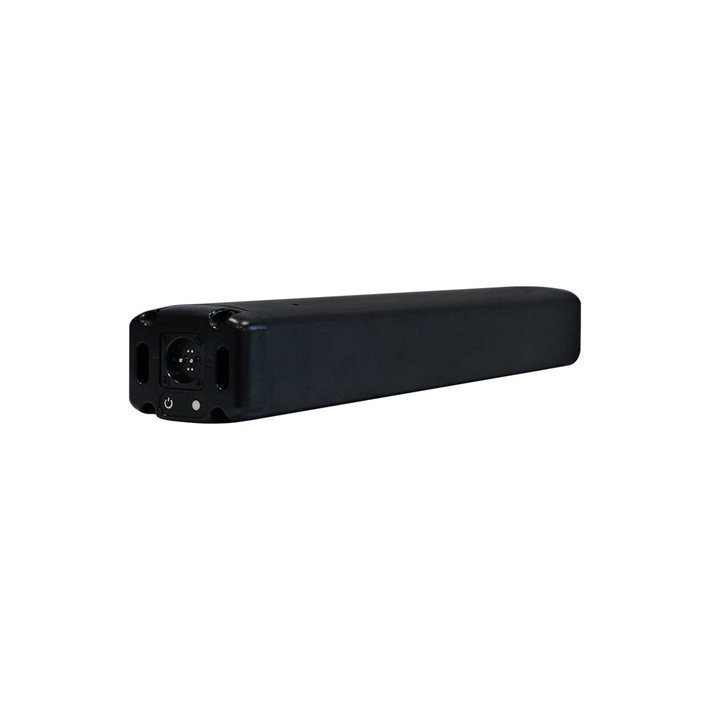

IF01 Inframe Battery

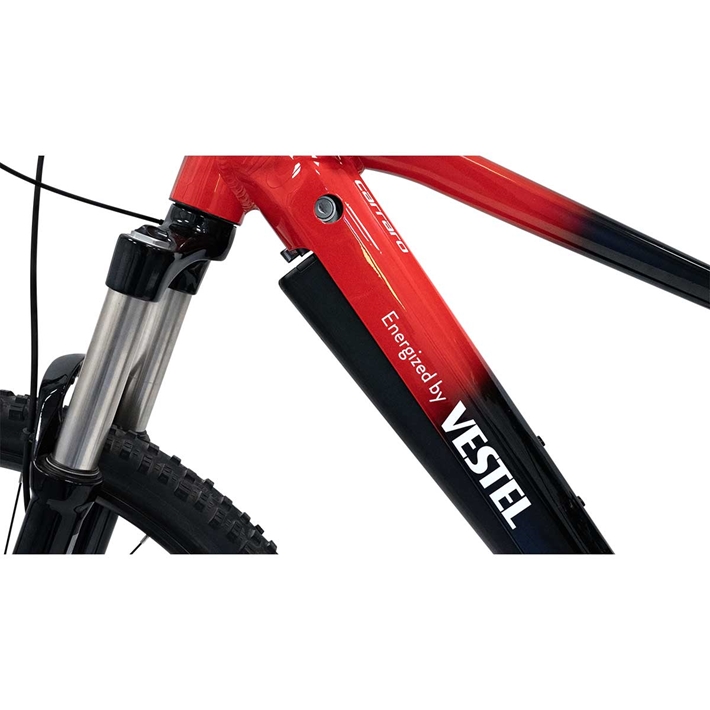

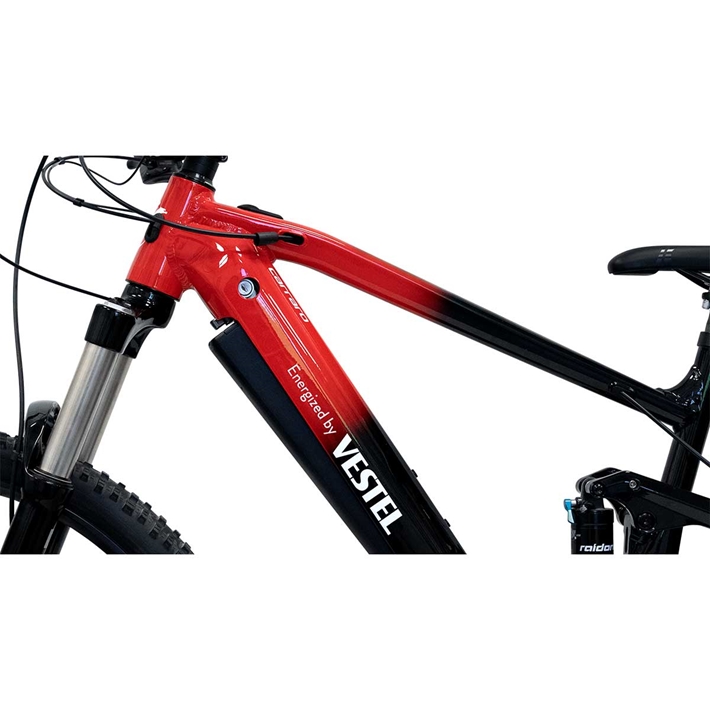

Fully embedded inside the bike frame, IF01 delivers 540 Wh of smart, balanced energy. It enhances ride stability while offering waterproof protection, diagnostics via IONIA app, and sleek aesthetics.
IF01 Inframe Battery
Fully embedded inside the bike frame, IF01 delivers 540 Wh of smart, balanced energy. It enhances ride stability while offering waterproof protection, diagnostics via IONIA app, and sleek aesthetics.
Different mounting options like rear carier downtube or in frame. Different capacities from 360Wh to 540Wht
Easy monitoring via mobile app over BLE
EN50604 certified
Reliable with laser welding technology
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Nominal Voltage | 36V |
| Capacity | 540 Wh |
| Cells | 21700, 5Ah /5.3Ah |
| Battery Pack | 10S3P |
| Charge Connector | 25A (min 2500 cycles) |
| Discharge Connector | 25A (min 2500 cycles) |
| Weight | 3,0kg |
| Dimensions (mm) | 410*79*61 |
| Communication Protocols | CAN, UART |
| Indicators | RGB LED |
| IP Level | IP66 |
| Mobile App Support | over Bluetooth |
| Other Features | Leaser Welding |
| Certifications | EN50604-1, UN38.3, IEC62133-2 |
| Warranty | 3 years or 1.000 cycles |
