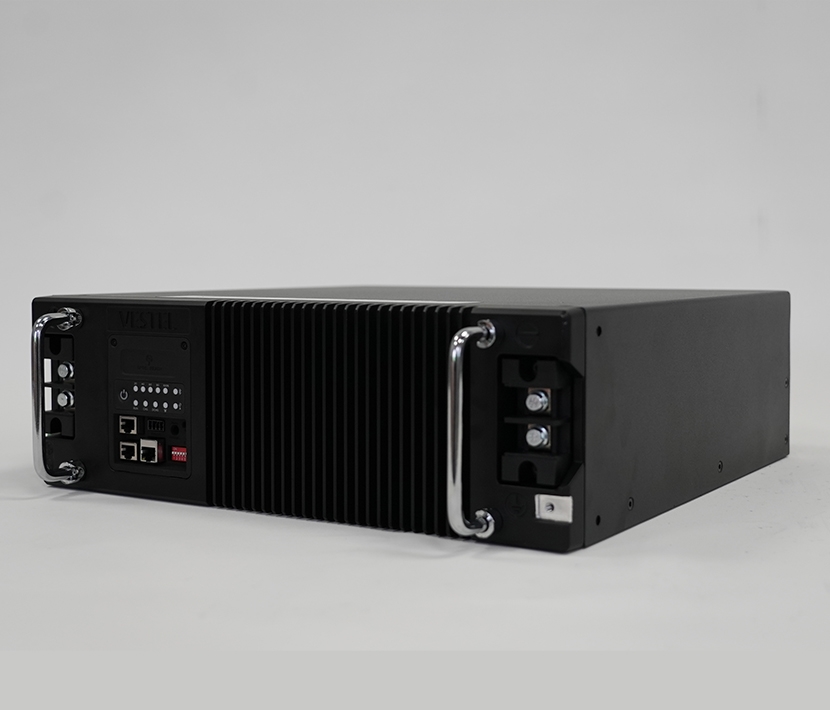

Telecom Battery
Designed for telco towers. 4,8kWh in a cabinet. Capable to use in 19U rack size. Unlimitted parallel connection. Capable with all rectifiers. Can be used with lead acid batteries parallely. Remote management via SW.
Telecom Battery
Designed for telco towers. 4,8kWh in a cabinet. Capable to use in 19U rack size. Unlimitted parallel connection. Capable with all rectifiers. Can be used with lead acid batteries parallely. Remote management via SW.
4,8kWh in a cabinet
Capable to use in 19U rack size
Unlimited parallel connection
Capable with all rectifiers
Can be used with lead acid batteries parallely
Remote management via SW
TECHNICAL INFORMATION
TECHNICAL INFORMATION
CELL CHEMISTRY
| Cell Configuration | LiFePO4 |
| Pack Nominal Voltage | 48 V |
| Rated Capacity | 100 Ah |
| Rated Energy | 4,8kWh |
| Boost Charge (CC/CV Charger) | 54,5 V |
| Float Charge (CV Mode) | 56,4 V |
| Application Voltage Range | 43V -54,5V |
| Max. Charge Current | 50 A |
| Max. Discharge Current | 100 A |
| Enclosure Size | 19" 140mm height |
| Operating Temperature Charge | 0-60 °C |
| Operating Temperature Discharge | -20-55 °C |
| Heaters | 2x55 W |
| Weight | 43 kg |
| Communication Protocols | RS485, CANBUS, Ethernet |
| Safety Standarts | IEC62619, IEC62281, UN38.3 |
