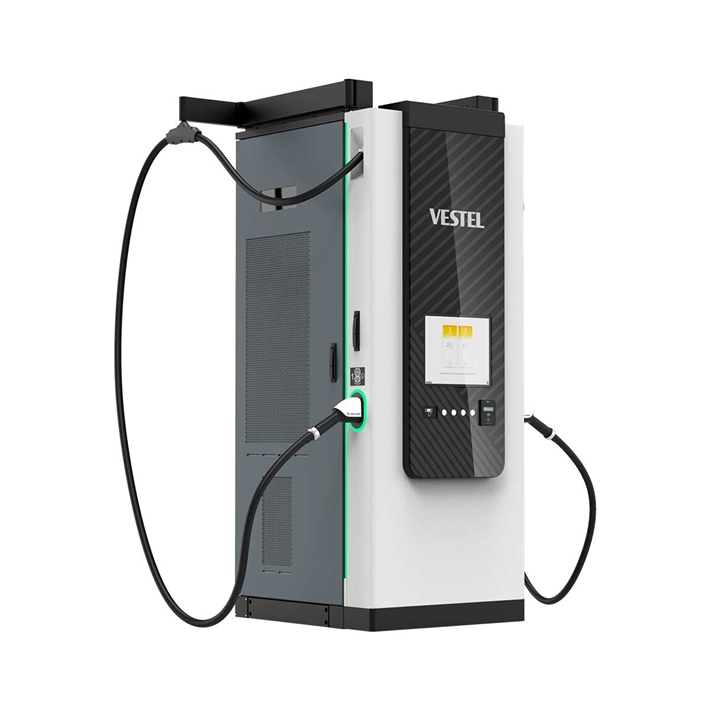

DC Sirius 160 / 240 / 320 / 400
Dc Sirius is rapid charging points for electric vehicles enables scalable and retrofittable power levels up to 400 kW have a modern design and user-friendly interface, mainly for public commercial use. The modular design increases charger utilization and ease of operation and maintenance.
DC Sirius 160 / 240 / 320 / 400
Dc Sirius is rapid charging points for electric vehicles enables scalable and retrofittable power levels up to 400 kW have a modern design and user-friendly interface, mainly for public commercial use. The modular design increases charger utilization and ease of operation and maintenance.
Charging up to 400kW with continuous 750A Liquid Cooled Cable Option
Online via Cellular, Ethernet, Wi-Fi
DC Charging of 2 vehicles in parallel
Remote load managementvia OCCP
Autocharge available, Ready for Plug& Charge
17''
Eichrecht Certified
More ways to pay, more ways to deploy:
From RFID and QR codes to mobile and optional credit card payment, DC Sirius expands your flexibility to set up fast charging stations anywhere.
Smooth interaction in any condition:
Use 17” touchscreen with technology that works flawlessly—even with gloves or in harsh weather.
Make your brand impossible to miss:
Sirius features a spacious front foil area for standout branding. Fully customizable with turnkey delivery in your corporate design.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Max. charging output per charge point | 160/ 240/ 320/ 400 kW upgradable power options |
| Charging connector | CCS: Liquid cooled (500A) or derate cable (300A) |
| Protection class | IP 54, IK 10 |
| Connectivity | Wifi, LAN, LTE |
| IT backend connection | OCPP 1.6J |
| Meter | MID meter (Option), Eichrecht compatible |
| Energy-/load management | Via OCPP |
| Authorisation | RFID, Credit Card Terminal(Option), OCPP |
| User Interface | 17’’ Touch Screen(DC Sirius), 27’’ Touch Screen option (DC Lyra), 'SOC LEDs |
| Credit Card Reader | Optional (Nayax, Payter Apollo options) |
| Cable Management | Optional |
| Dimensions in mm (HxWxD) | 2040 x820 x 825 |
| Environmental operating temperature | -35 °C to +50 °C |
