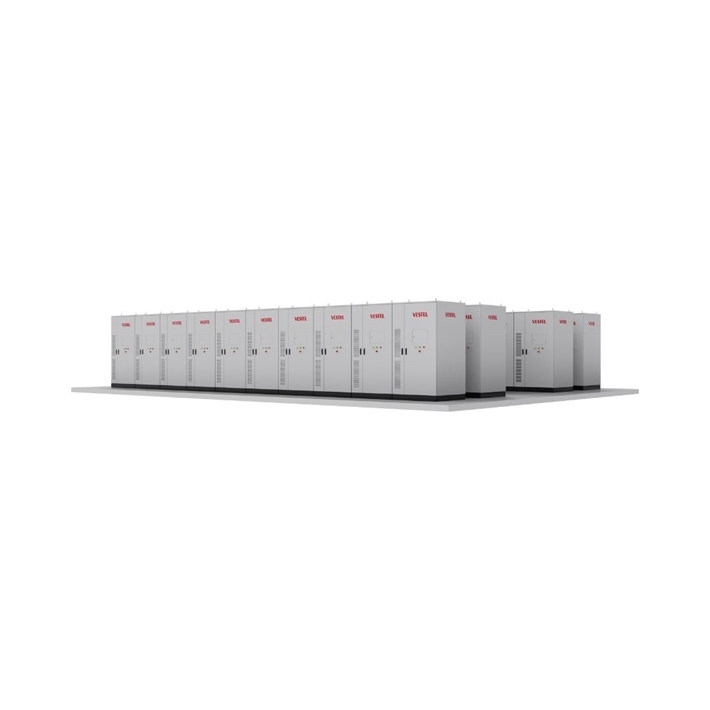

CBS02 418kWh DC Utility
Designed for utility scale solutions, flexible and scalable for different use cases, easy to maintanance, easy installation, high battery density up to 1 C-Rate, Safe and Reliable, Long Lasting
CBS02 418kWh DC Utility
Designed for utility scale solutions, flexible and scalable for different use cases, easy to maintanance, easy installation, high battery density up to 1 C-Rate, Safe and Reliable, Long Lasting
Ideal For C&I And Scalable Utility Solutions
Moduler Design For Bigger Capacity Requirements
IP65 Protection Level For Outdoor Usage
1C Charge And Discharge Current Support

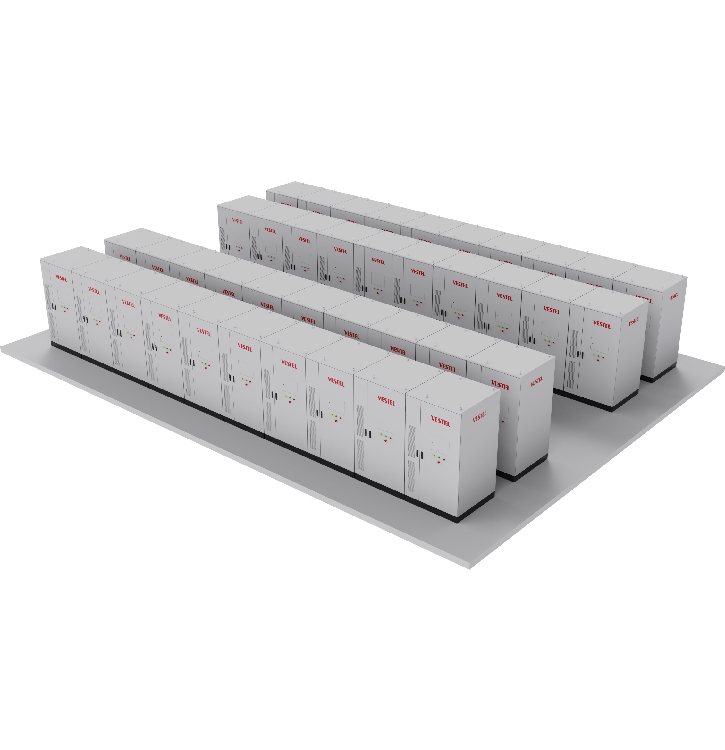

Flexible and easy to combine parallely for bigger capacity requirements
Liquid cooling System
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Capacity | 418 kWh |
| Voltage | 1331.2 V |
| Voltage range | 1040~1500 V |
| Configuration | 10*1P416S |
| SOC | ≤5% |
| Self Discharge | ≤3% M |
| IP Level | IP65 |
| Balance | Active/Passive Balancing |
| Weight | 3.700 KG |
| Cooling System | Liquid cooling |
| Noise | <65dB |
| Dimension (L*W*H) | 1300×1300×2400 mm |
CELL FEATURES
| Battery Type | LiFePO4 |
| Nominal capacity | 314 Ah |
| Nominal voltage | 3.2 V |
| Standard charge | 1C |
| Standard Discharge | 1C |
| Temperature Charge | 0-60 °C |
| Temperature Discharge | -30-60 °C |
| Dimension | 71*173*207 mm |
| Weight | 5490 g±300 g |
| Certification | GB/T 36276-2023, UL1973. UL9540A, IEC62619. UN38.3. ROHS. REACH |
| Cycle life | ≥ 8000 cycles (70% SOH @25℃) |
BATTERY MODULES
| Voltage Range | 145.6V-187.2V (Nom.166.4V) |
| Rated Capacity | 314 Ah |
| Rated Energy | 52,25 kWh |
| Circuit Breaker | 315 A, 2 pcs |
| Cooling | Liquid cooling system |
| Operating Temperature | 0 to 50 °C |
| Max Charge Current | 1C |
| Max Discharge Current | 1C |
| Cycle Life | ≥ 8000 cycles (70% SOH @25℃) |
| Weight | 330 kg |
| Dimension | 1157x848x244mm |
| Communication Protocols | RS485, CANBUS, Ethernet |
| Safety Standarts | IEC63056, IEC62619, IEC62620, UN38.3 |
