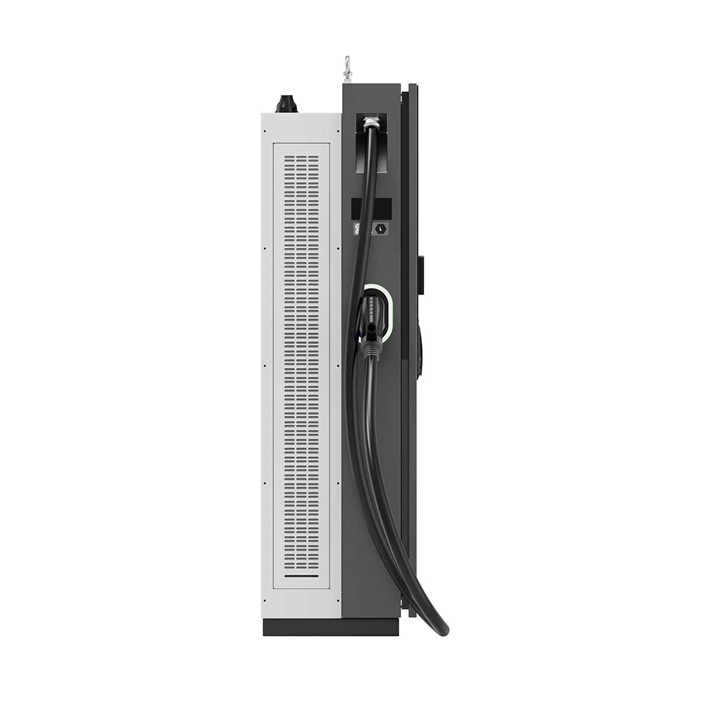

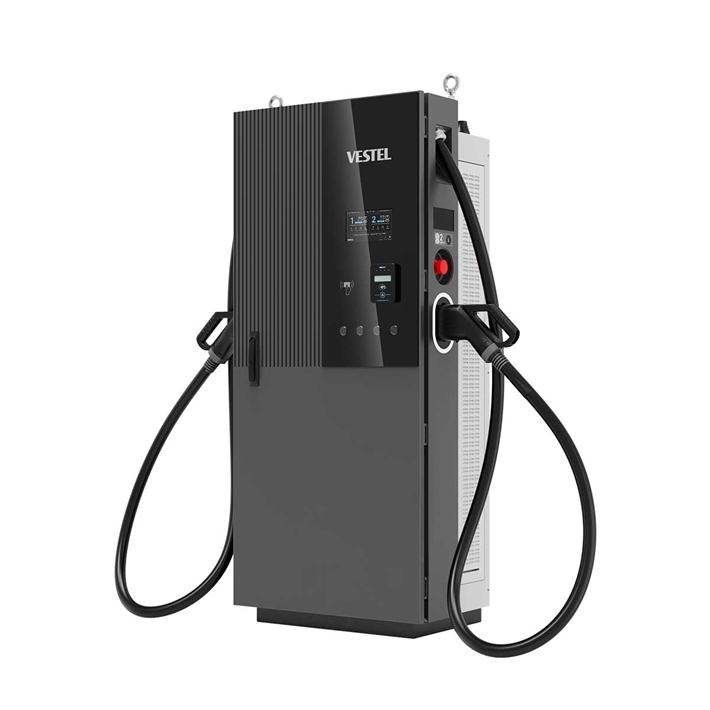

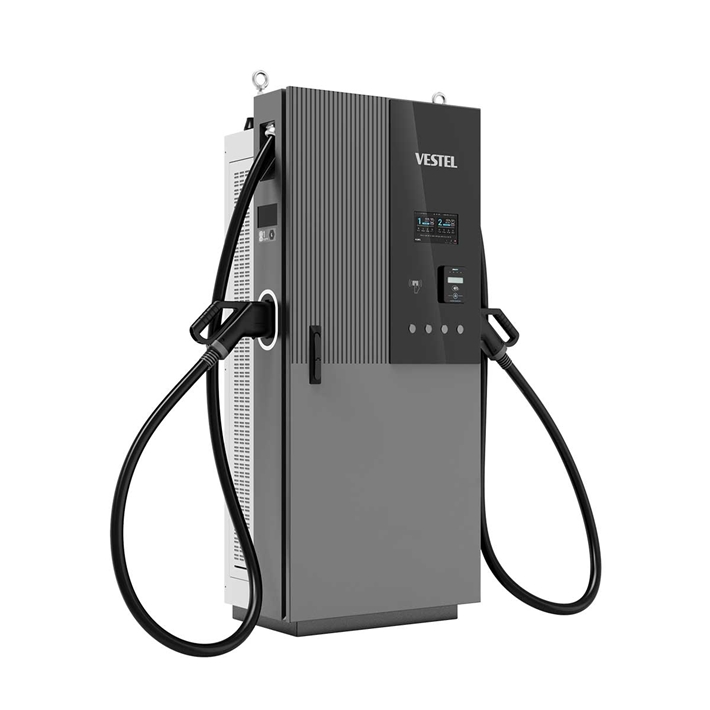

DC Spica 80
DC Spica 80
Charging up to 80kW DC
7'' display
Online via cellular/ Wi-Fi
Hardware ready for ISO15118
DC Charging of 2 vehicles in paralell
Remote load management
German calibration law
Powerful Urban Fast Charging, yet Stylish
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Max. charging output per charge point | Up to 80 kW DC output |
| Charging connector | Single or Double CCS2 Cable |
| Protection class | IP 54, IK 10 |
| Connectivity | Wifi, LAN, LTE |
| IT backend connection | OCPP 1.6J |
| Meter | MID meter (Option), Eichrecht compatible |
| Energy-/load management | Via OCPP |
| Authorisation | RFID, Credit Card Terminal(Option), OCPP |
| User Interface | 7'' TFT, LED |
| Credit Card Reader | Optional (Payter Apollo) |
| Cable Management | - |
| Dimensions in mm (HxWxD) | 1500 x684 x 421 |
| Environmental operating temperature | -35 °C to +50 °C |
