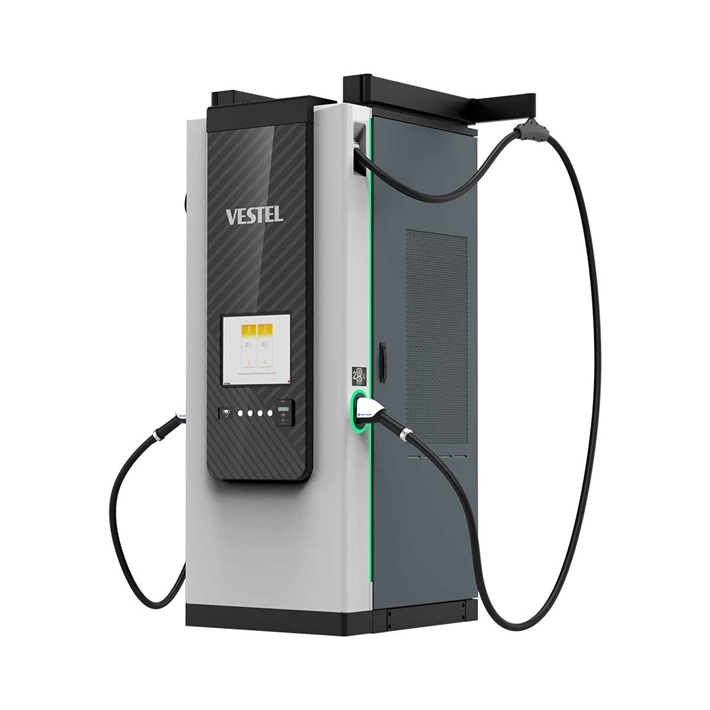

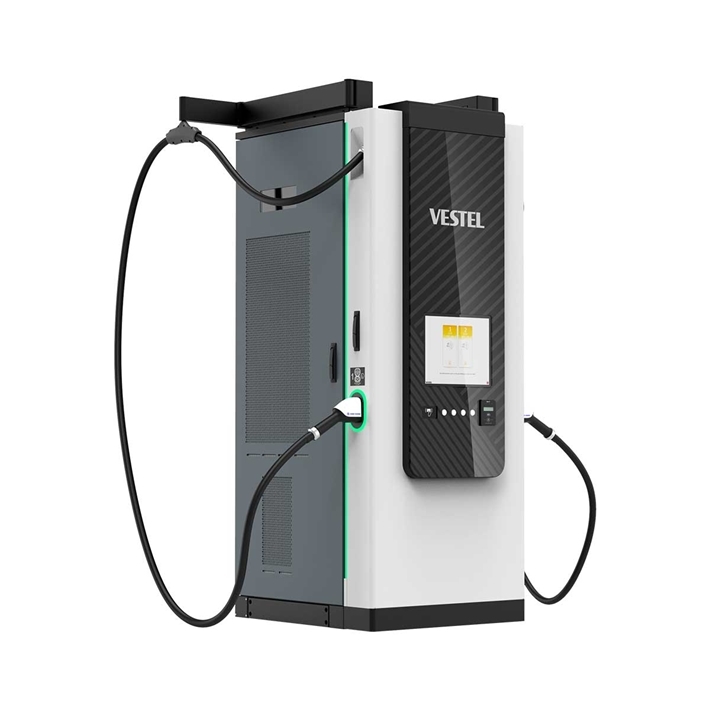

DC Sirius 160 / 240 / 320 / 400

Dc Sirius is rapid charging points for electric vehicles enables scalable and retrofittable power levels up to 400 kW have a modern design and user-friendly interface, mainly for public commercial use. The modular design increases charger utilization and ease of operation and maintenance.

DC Sirius 160 / 240 / 320 / 400

Charging power up to 400kw with liquid cooled cable system for continuous 500 A

Remote load management via OCPP

MID Certified DC meter

Connection to IT backends via OCPP 1.6J

DC charging of two electric vehicles in parallel

Ready for ISO 15118

Online via cellular, Wi-Fi and Ethernet

17" touch display

Highway Star with Upgradeable Power Levels

REQUEST QUOTE

More ways to pay, more ways to deploy:

From RFID and QR codes to mobile and optional credit card payment, DC Sirius expands your flexibility to set up fast charging stations anywhere.

Smooth interaction in any condition:

Use 17” touchscreen with technology that works flawlessly—even with gloves or in harsh weather.

Make your brand impossible to miss:

Sirius features a spacious front foil area for standout branding. Fully customizable with turnkey delivery in your corporate design.

TECHNICAL INFORMATION

Max. charging output per charge point	160/ 240/ 320/ 400 kW upgradable power options
Charging connector	CCS: Liquid cooled (500A) or derate cable (300A)
Protection class	IP 54, IK 10
Connectivity	Wifi, LAN, LTE
IT backend connection	OCPP 1.6J
Meter	MID meter (Option), Eichrecht compatible
Energy-/load management	Via OCPP
Authorisation	RFID, Credit Card Terminal(Option), OCPP
User Interface	17’’ Touch Screen(DC Sirius), 27’’ Touch Screen option (DC Lyra), 'SOC LEDs
Credit Card Reader	Optional (Nayax, Payter Apollo options)
Cable Management	Optional
Dimensions in mm (HxWxD)	2040 x820 x 825
Environmental operating temperature	-35 °C to +50 °C
