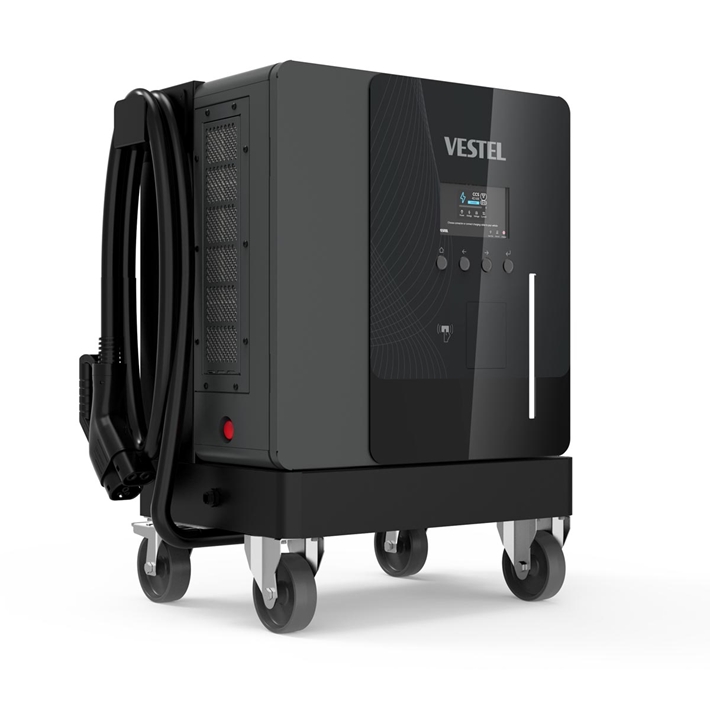

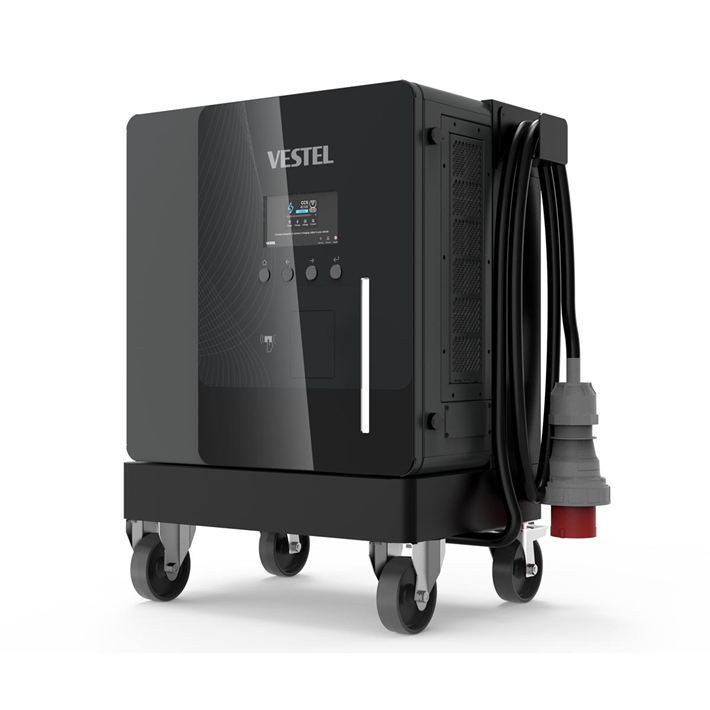

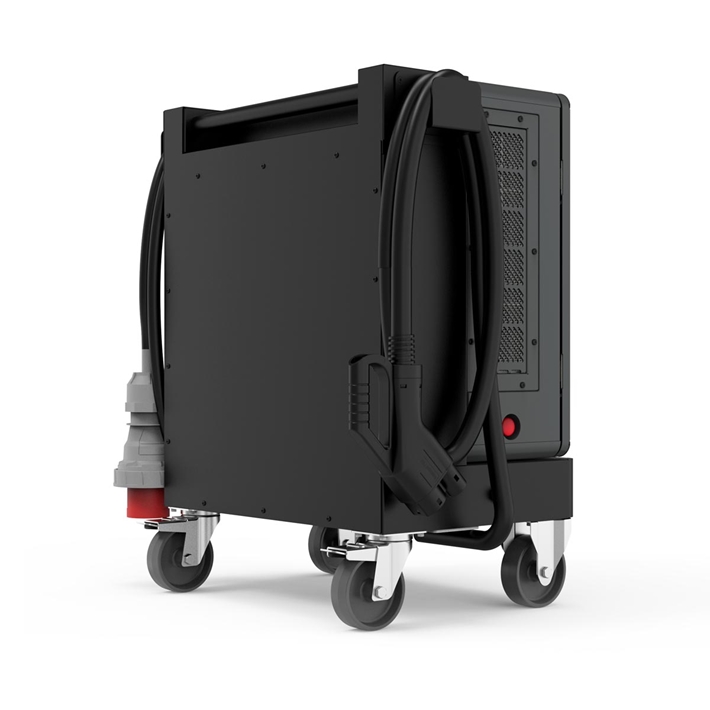

Vestel DC Vesper M 40
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Max. charging power per charging point | Up to 40 kW DC output |
| Input Rating | 230/400 Vac ±10% , 50/60 Hz, 61A / 3 phase AC Supply Plug: EN IEC60309-2 3P+N+E AC Supply Plug The charging station is designed to operate with supply currents of 16A, 32A and 62A depending on the installation settings configuration. |
| Output Voltage | 200-920V |
| Output Current | 133A max. |
| Noise Level | <55 dBA avg. from 1m distance from front @25° C |
| IEC Protection Class | Class 1 |
| Internal Protections | Residual current sensing, Insulation monitoring, Over current / Over voltage / Under voltage / Short circuit / Over Temperature / Surge Protection |
| Other Safety Features | Emergency Stop button (optional), Tilt sensor, Door Switches |
| Power Sharing | 40 kW |
| Charging connector | Single CCS2 Cable |
| Protection class | IP 54, IK 10 |
| Connectivity | Wifi, LAN, LTE |
| IT backend connection | OCPP 1.6J |
| Meter | NA |
| Energy-/load management | via OCPP |
| Authorisation | RFID, OCPP |
| User Interface | 7" TFT, LED |
| Credit Card Reader | - |
| Cable Management | - |
| Dimensions in mm (HxWxD) | 895 x774 x530 |
| Environmental operating temperature | -35 °C to +50 °C |
