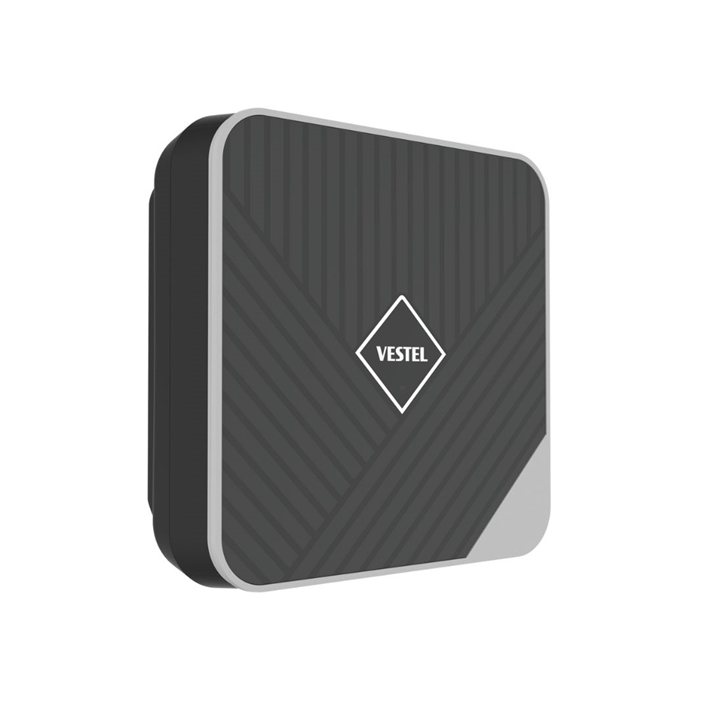

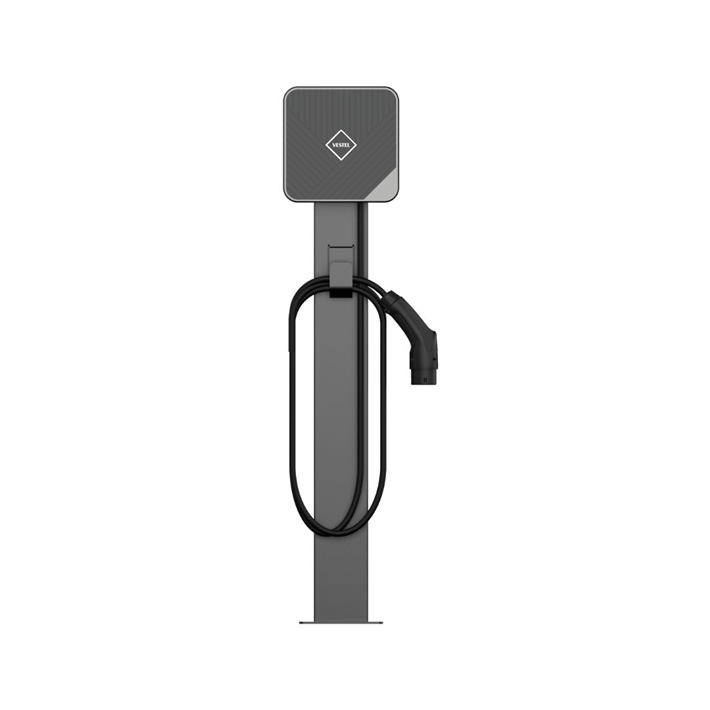

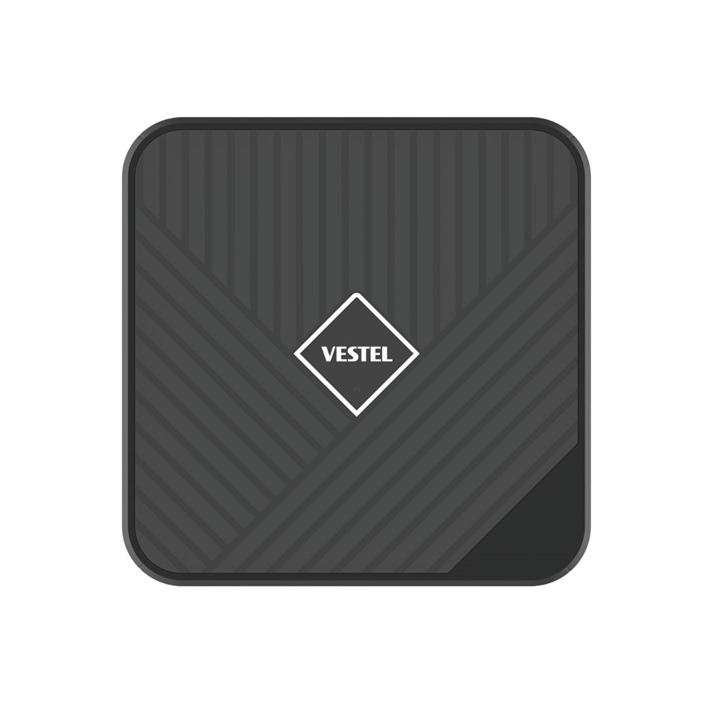

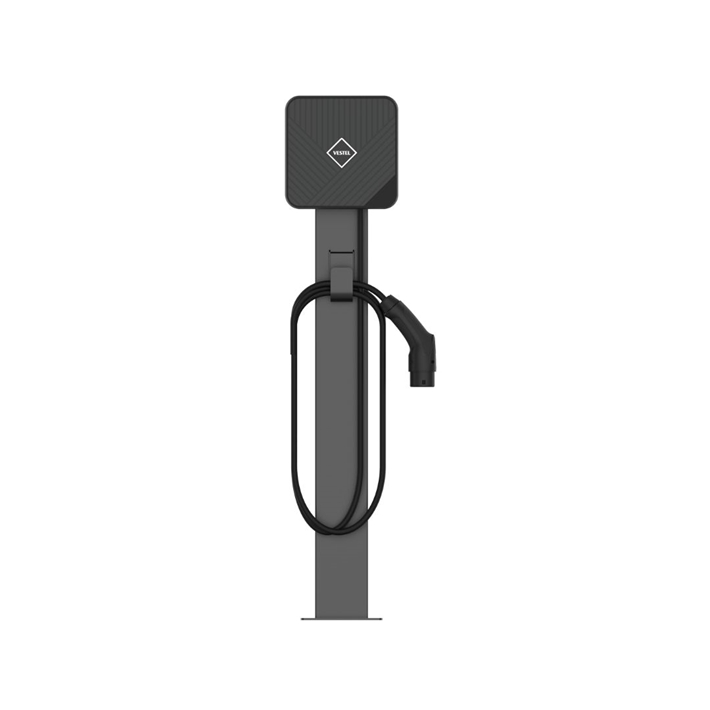

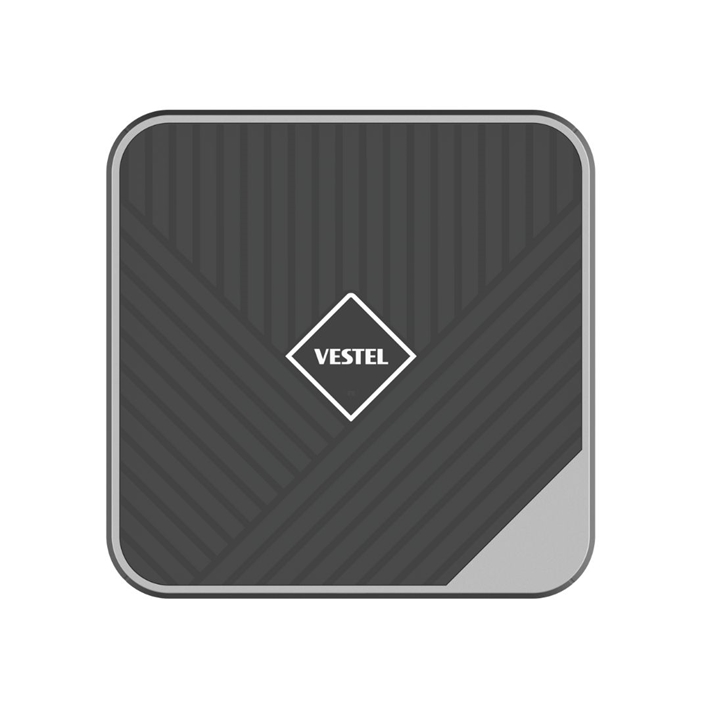

AC Vario 7/11/22
Small but powerfull. Home charging should be seamless. Compact and future proof and offers a unique style factor.
AC Vario 7/11/22
Small but powerfull. Home charging should be seamless. Compact and future proof and offers a unique style factor.
Up to 22 kW AC charging power for maximum charging speed with all EVs – even at ambient temperatures up to 50°C
ISO15118-2 Certified by Hubject
Online Via WLAN and LAN
Type A RCD or PEN can be integrated
High Secure Data Communication (For UK)
Remote and local management
Compact and Stylish for your home
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Max. charging output per charge point | Up to 22 kW |
| Charging connector | Type 2 cable (5m and 7m) |
| Protection class | IP 54, IK 10 |
| Electrical Protection | DC-sensor 6mA, On-board PEN detection (UK region)(Optional) |
| Connectivity | Wifi, LAN, LTE (Optional) |
| IT backend connection | OCPP 1.6J (OCCP 2.0.1 Upgradable) |
| Meter | - |
| Energy-/load management | Potential Free Contact, Modbus TCP/ IP |
| Authorisation | RFID, "Drive Green Next" Mobile App |
| User Interface | LED |
| Different Cabinets | Quattro, Lou , Arch , Vario |
| Dimensions in mm (HxWxD) | 380.0 mm x 380.0 mm x 270.0 mm |
| Environmental operating temperature | -35 °C to +55 °C |
