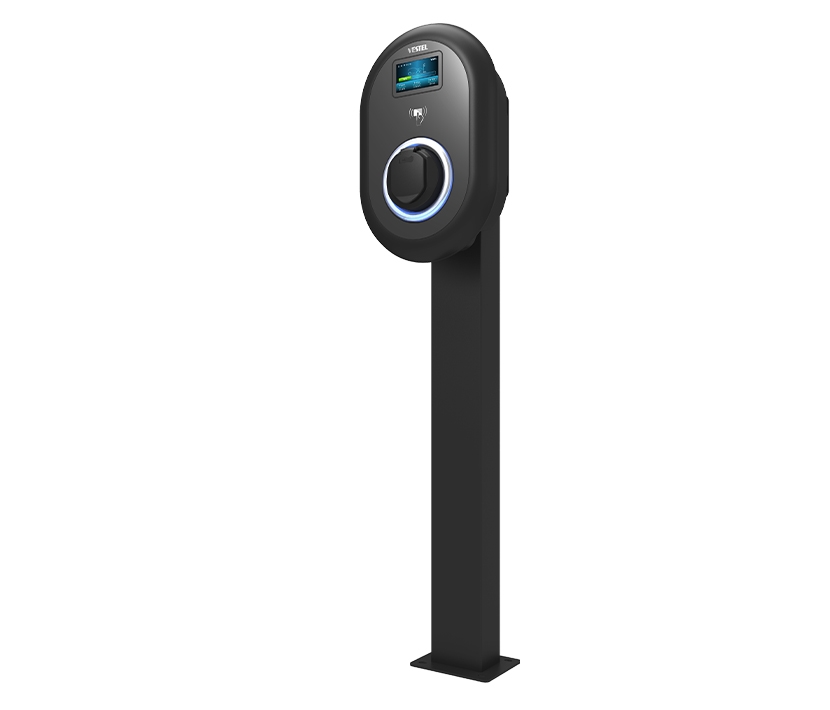

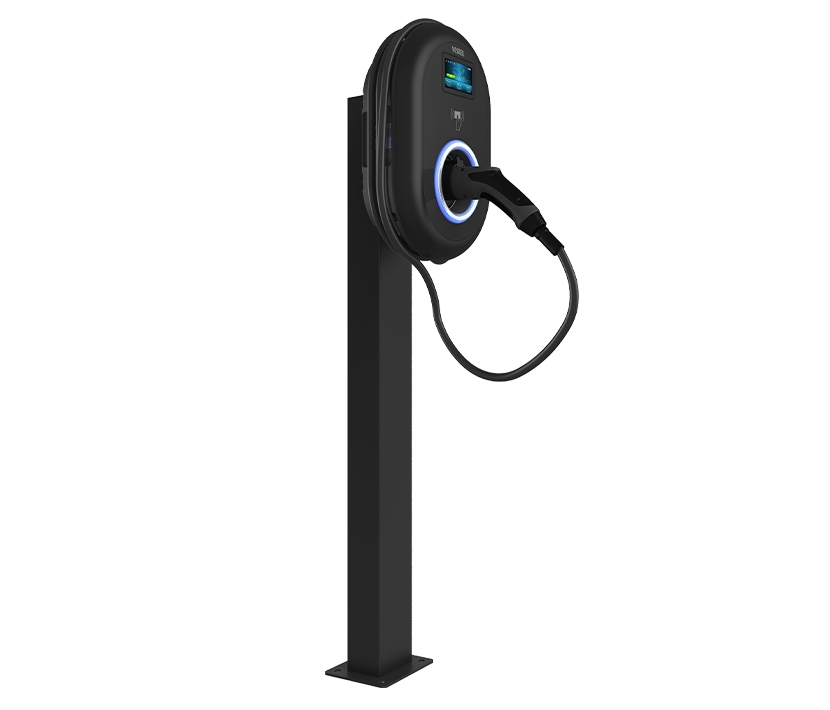

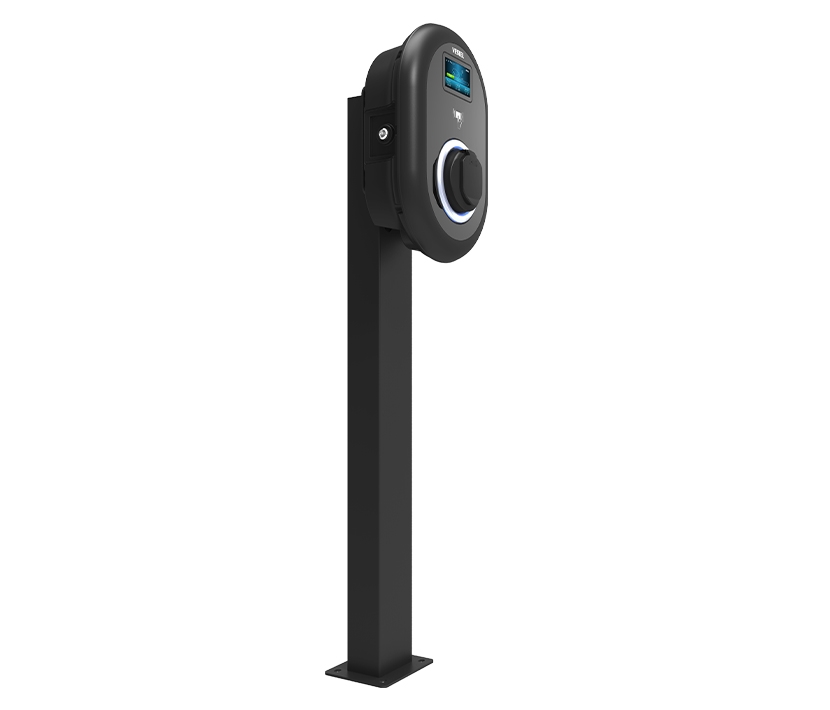

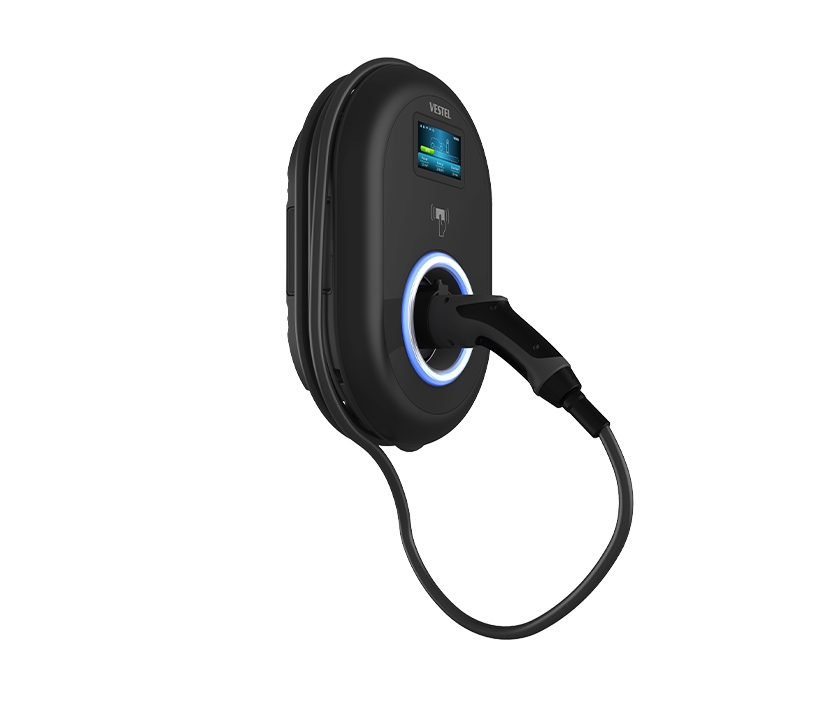

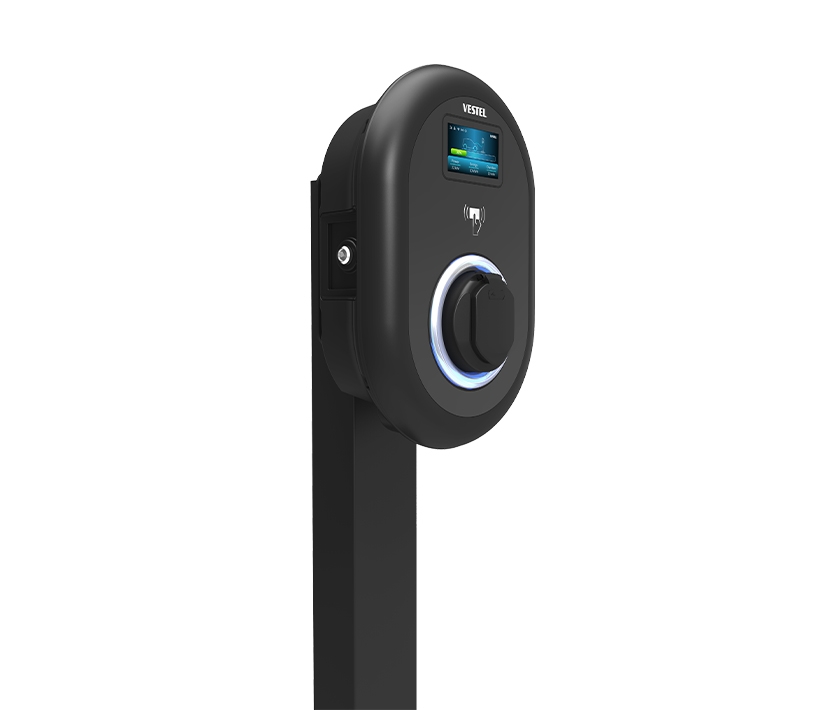

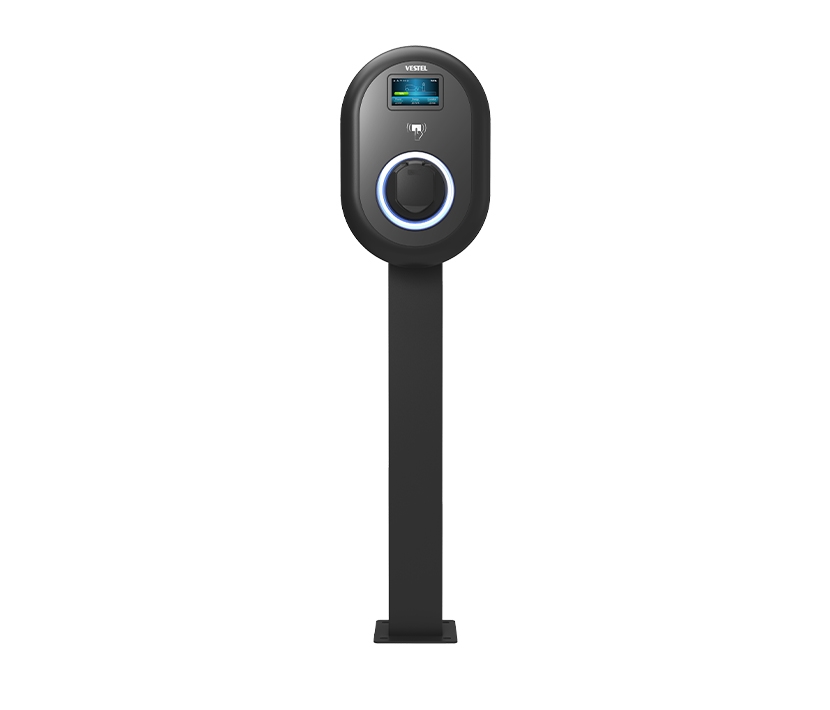

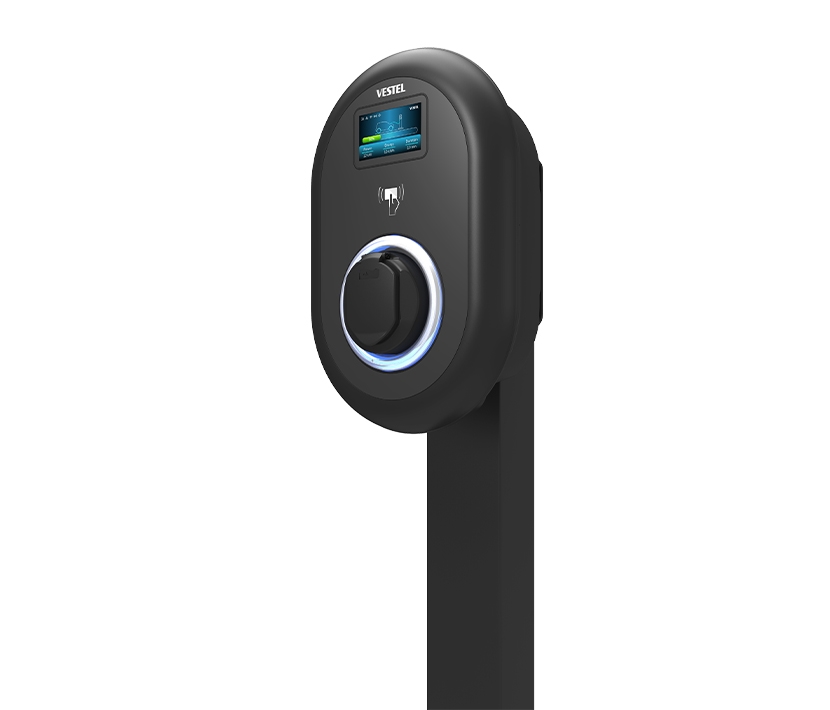

Vestel AC Rhea 7/11/22
The Rhea, Zenith, Libra series are the versatile all-rounder in the AC sector. Depending on the equipment, the charging station can be used simply in the private sector or with full equipment in professional use cases.
Vestel AC Rhea 7/11/22
The Rhea, Zenith, Libra series are the versatile all-rounder in the AC sector. Depending on the equipment, the charging station can be used simply in the private sector or with full equipment in professional use cases.
Up to 22 kW AC charging power for maximum charging speed with all EVs – even at ambient temperatures up to 50°C
ISO15118-2 Certified by Hubject
Online Via WLAN and LAN
Type A RCD or PEN can be integrated
High Secure Data Communication (For UK)
4.3” TFT Display
Remote and local management
Fully Customizable for All Use Cases
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Max. charging output per charge point | Up to 22 kW |
| Charging connector | Type 2 Socket and cable, (5m and 7m), Type 2 Shutter Socket, GB/T , Type1 Cable |
| Protection class | IP 54, IK 10 |
| Electrical Protection | RCD type A (optional), DC-sensor 6mA, PEN (1-phase for UK region)(Optional) |
| Connectivity | Wifi, LAN, LTE |
| IT backend connection | OCPP 1.6J (OCCP 2.0.1 Upgradable) |
| Meter | MID & Eichrechtskonform (optional) |
| Energy-/load management | Potential Free Contact, Modbus TCP/ IP, EEBUS, OCCP |
| Authorisation | RFID, App, ISO 15118 Plug & Charge(Optional) |
| User Interface | 4.3'' TFT Screen (optional), LED |
| Different Cabinets | Zenith, Libra, Rhea |
| Dimensions in mm (HxWxD) | Rhea : 460x315x135 mm, Zenith, Libra : 460x312x163 mm |
| Environmental operating temperature | -35 °C to +55 °C |
