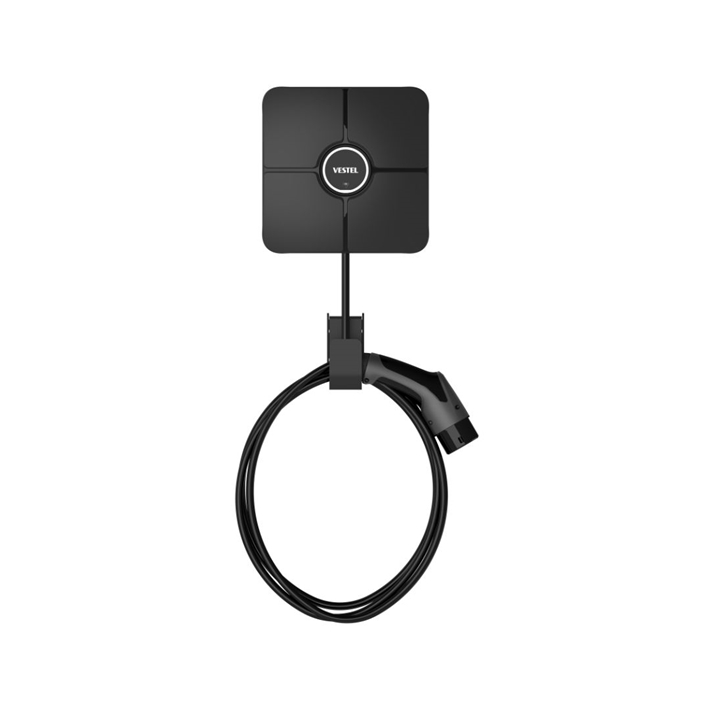

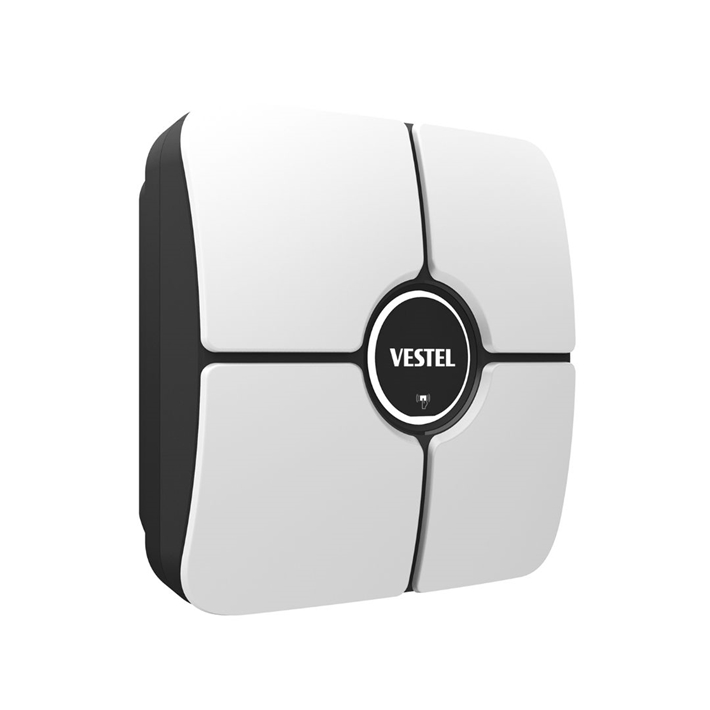

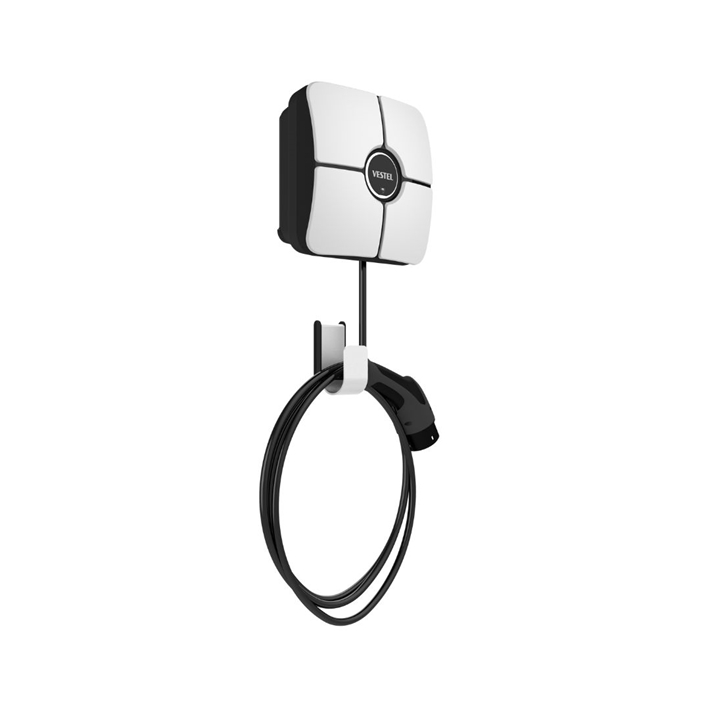

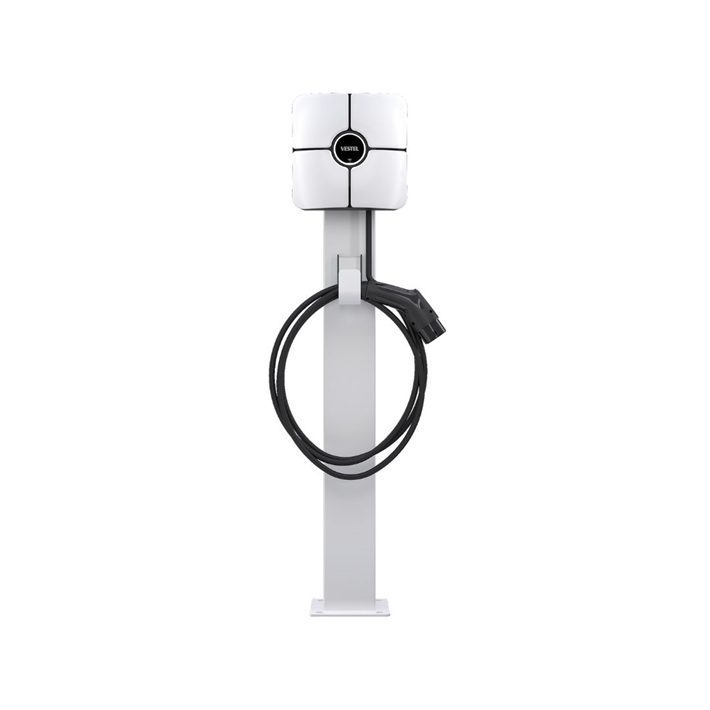

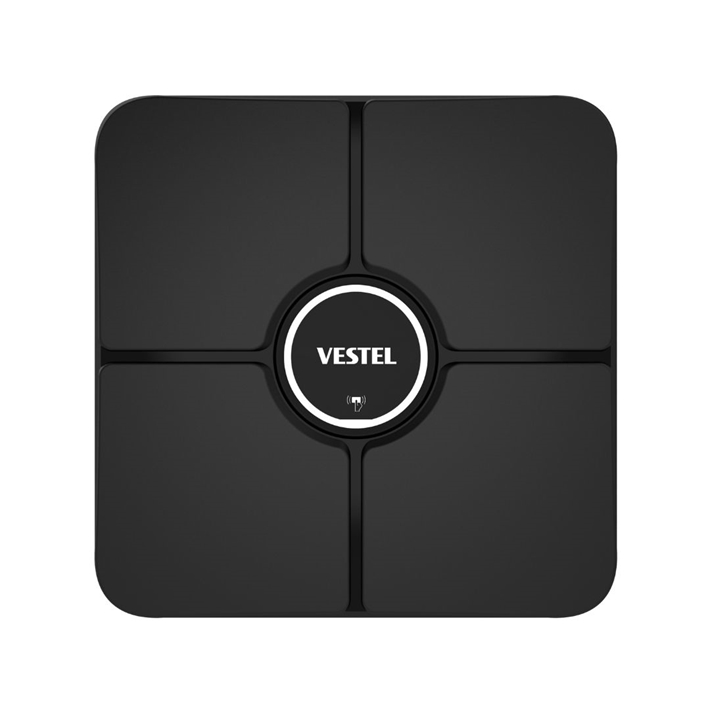

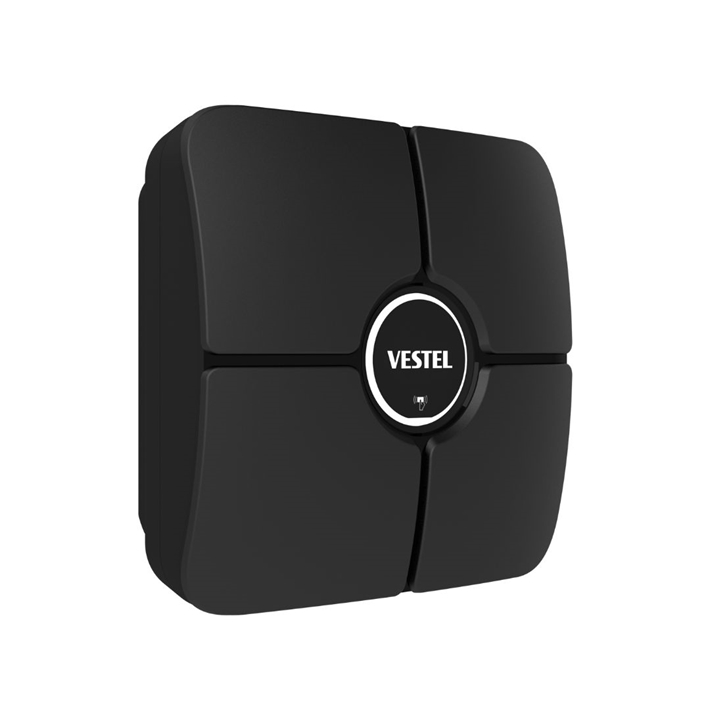

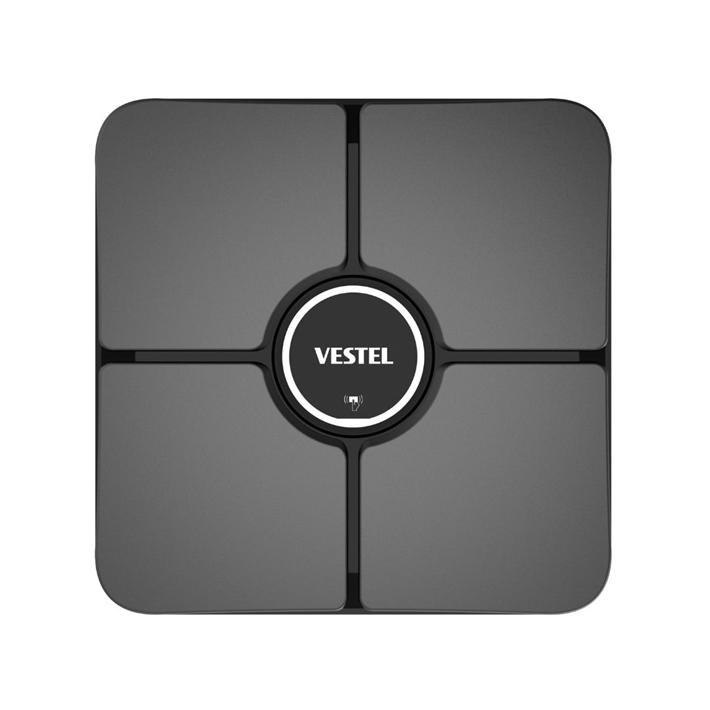

AC Quatro 7/11/22
Small but powerfull. Home charging should be seamless. Compact and future proof and offers a unique style factor.
AC Quatro 7/11/22
Small but powerfull. Home charging should be seamless. Compact and future proof and offers a unique style factor.
Up to 22 kW AC charging power for maximum charging speed with all EVs
Plug& Charge Certified
Online via Cellular, Ethernet, Wi-Fi
Onboard DC 6mA RCD
High Secure Platform
Remote and local management
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Max. charging output per charge point | Up to 22 kW |
| Charging connector | Type 2 cable (5m and 7m) |
| Protection class | IP 54, IK 10 |
| Electrical Protection | DC-sensor 6mA, On-board PEN detection (UK region)(Optional) |
| Connectivity | Wifi, LAN, LTE (Optional) |
| IT backend connection | OCPP 1.6J (OCCP 2.0.1 Upgradable) |
| Meter | - |
| Energy-/load management | Potential Free Contact, Modbus TCP/ IP |
| Authorisation | RFID, "Drive Green Next" Mobile App |
| User Interface | LED |
| Different Cabinets | Quattro, Lou , Arch , Vario |
| Dimensions in mm (HxWxD) | Rhea : 460x315x135 mm, Zenith, Libra : 460x312x163 mm |
| Environmental operating temperature | -35 °C to +55 °C |
