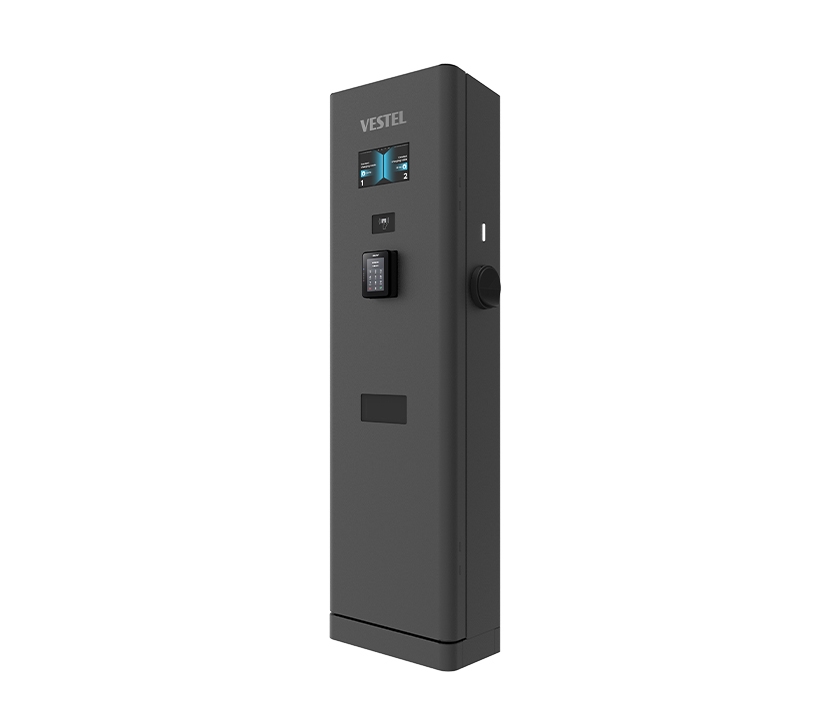

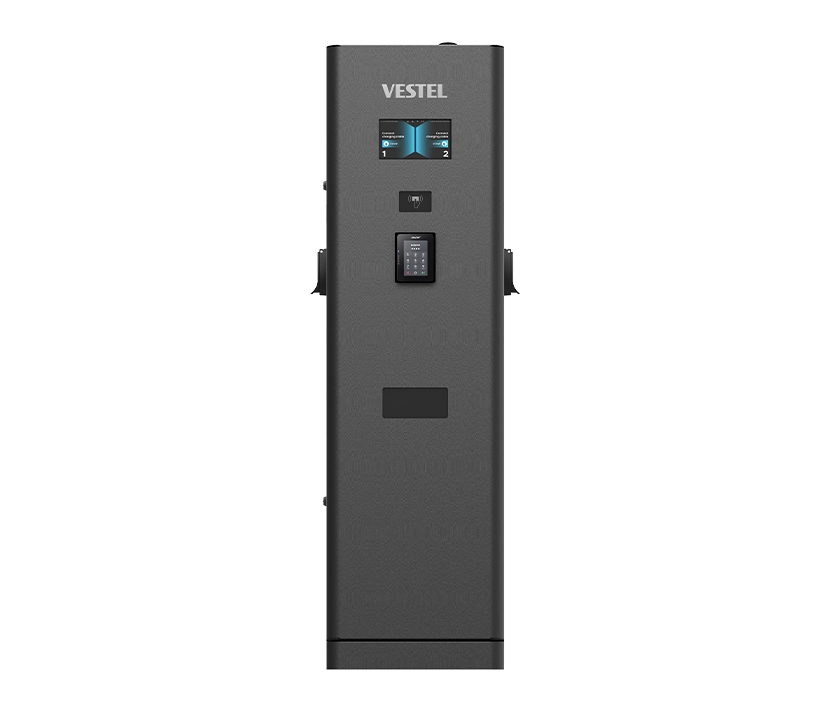

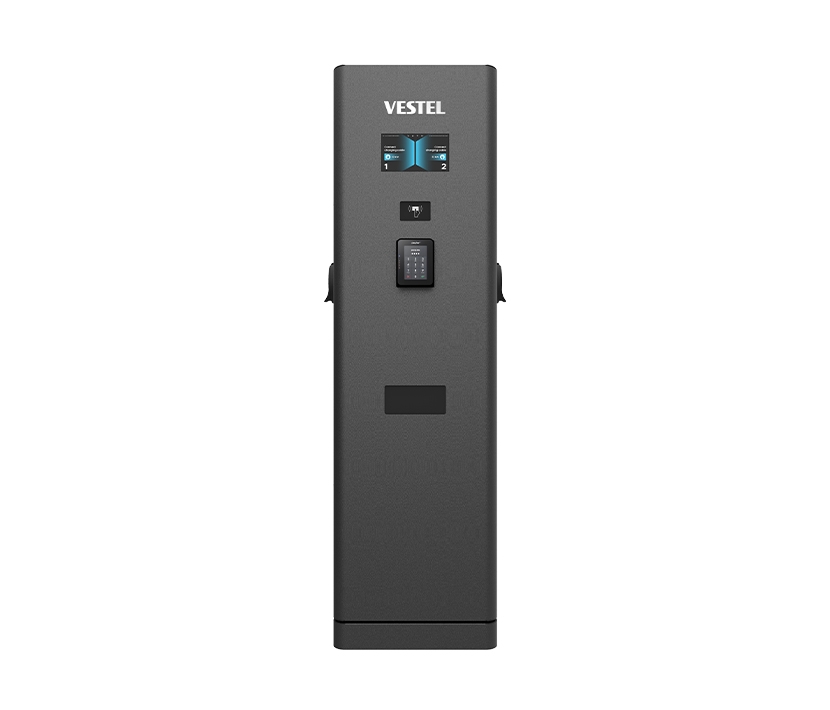

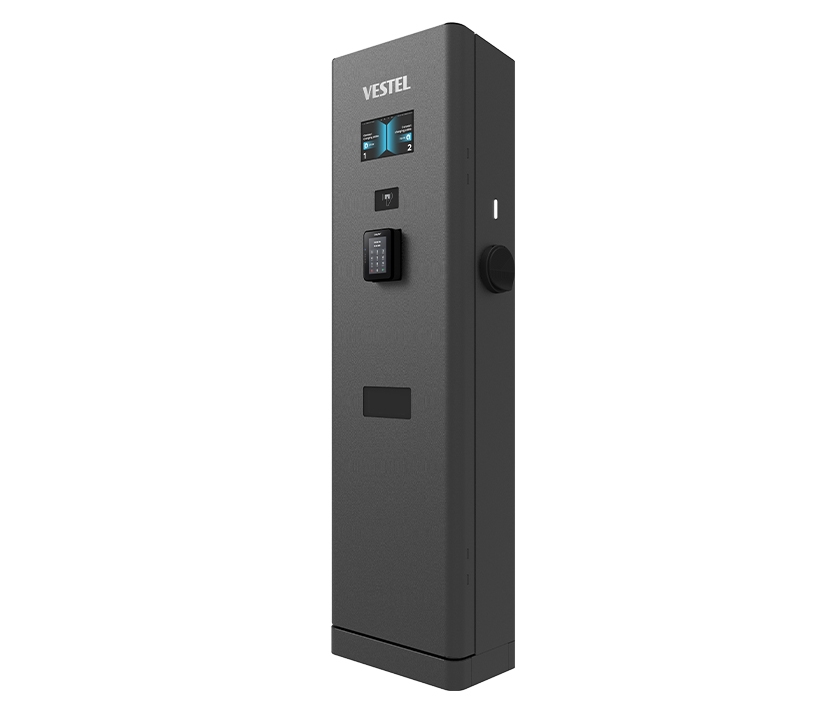

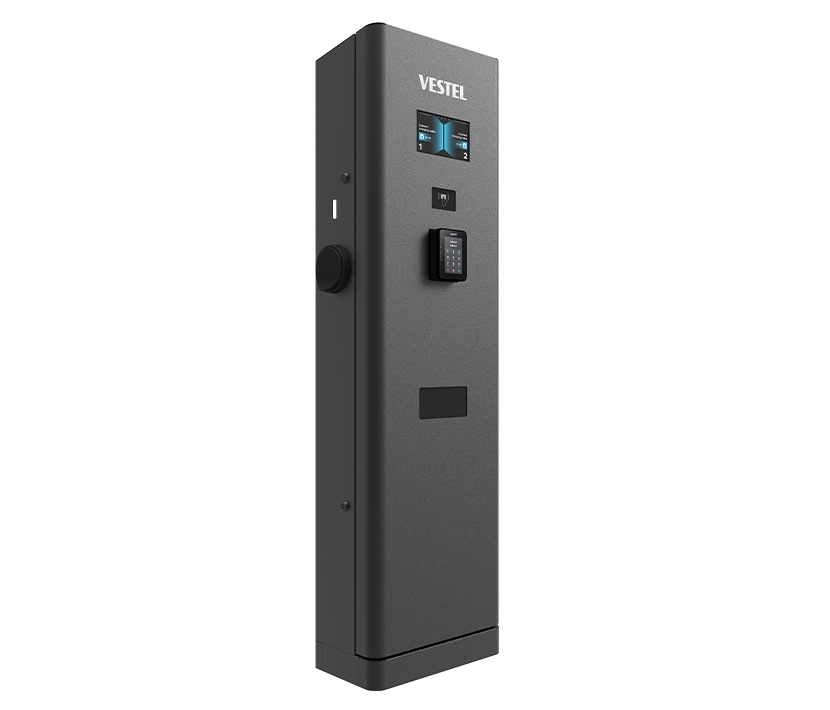

AC Vega Dual 14/22/44
With its redesigned structure and more compact design, AC Vega can charge two vehicles simultaneously in urban applications without occupying much space. Its integrated protection eliminates the need for an external protection device, providing TCO savings.
AC Vega Dual 14/22/44
With its redesigned structure and more compact design, AC Vega can charge two vehicles simultaneously in urban applications without occupying much space. Its integrated protection eliminates the need for an external protection device, providing TCO savings.
Up to 22 kW AC charging each charging socket
RFID activation already included in the basic configuration
Online via Cellular, WLAN and LAN
Easy installation and service,
Plug&Charge
Vandal-proof metal body
High Secure Data Communication (For UK)
Large display
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Max. charging output per charge point | Up to 22 kW |
| Charging connector | Type 2 Socket, Type 2 Spiral Cable, Type 2 Shutter Socket |
| Protection class | IP 54, IK 10 |
| Electrical Protection | Main Circuit Breaker, RCD Type A, DC Sensor 6mA, Back-pack for DNO Requirements (Optional) |
| Connectivity | Wifi, LAN, LTE |
| IT backend connection | OCPP 1.6J (OCCP 2.0.1 Upgradable) |
| Meter | MID Approved Meter, Eichrechtskonform (Q2 2025) |
| Energy-/load management | Modbus TCP/ IP, OCCP |
| Authorisation | RFID, App, Credit Cart Terminal (Optional), ISO 15118 Plug&Charge (Optional) |
| User Interface | 7'' Touch Screen, LED |
| Different Cabinets | - |
| Dimensions in mm (HxWxD) | 1300 x350 x 210 mm |
| Environmental operating temperature | -25 °C to +50 °C |
