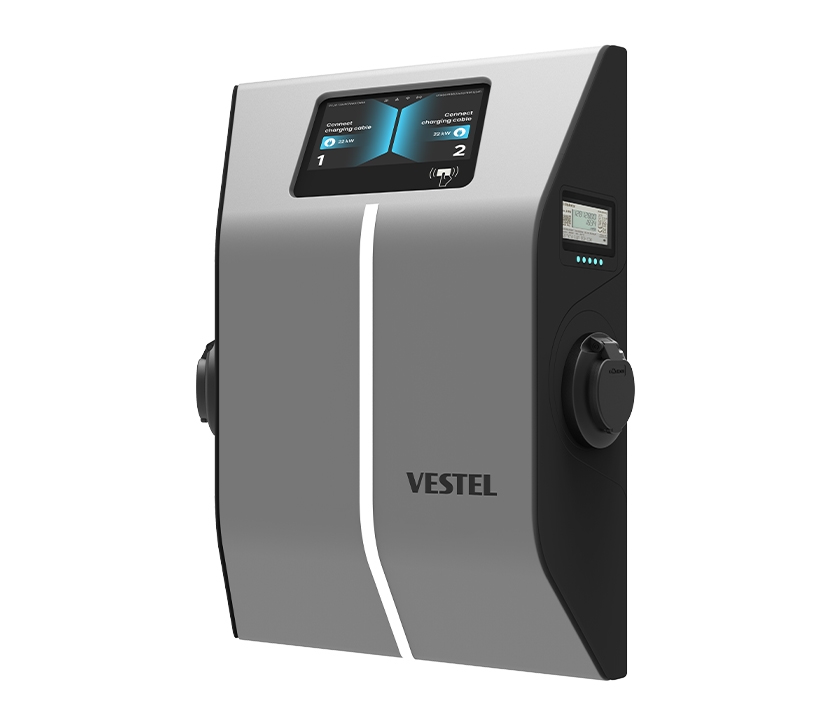

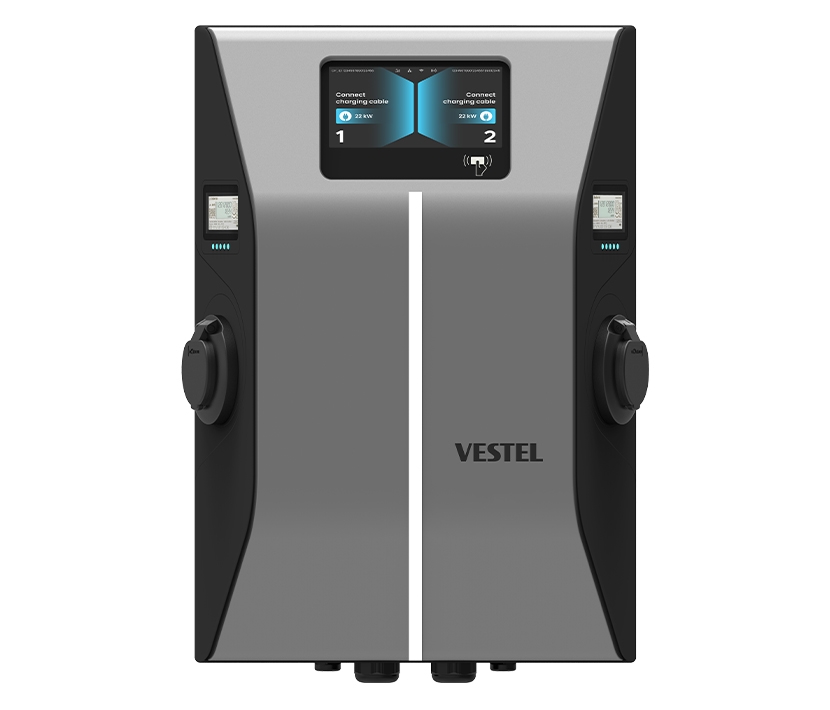

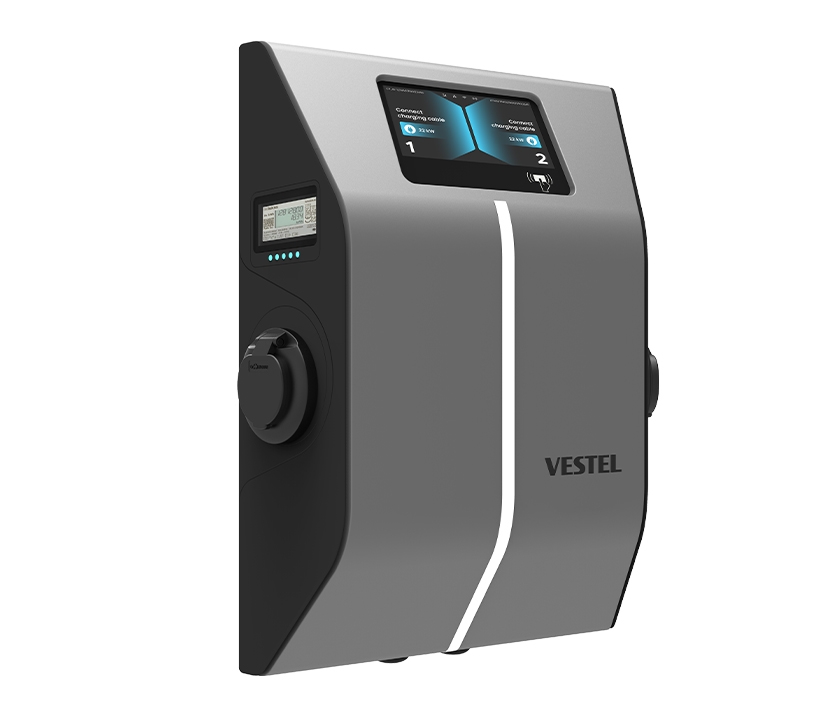

Vestel AC Gemini Dual 14/22/44
AC Gemini is the perfect solution for private and semi-public applications. Double socket in a compact enclosure, simplifies cluster installations for mass charging requirement.
Vestel AC Gemini Dual 14/22/44
AC Gemini is the perfect solution for private and semi-public applications. Double socket in a compact enclosure, simplifies cluster installations for mass charging requirement.
Up to 22 kW AC charging each charging socket
RFID activation already included in the basic configuration
Online via Cellular, WLAN and LAN
Easy installation and service
Hardware ready for ISO15118 Plug&Charge
Local And Remote Load Management Possible
High Secure Data Communication (For UK)
7' LED Display
Compact, Dual Output, Low Infrastructure Cost
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Max. charging output per charge point | 2 x 7.4 kW, 1x 22kW or 2 x 11 kW , 2 x 22 Kw |

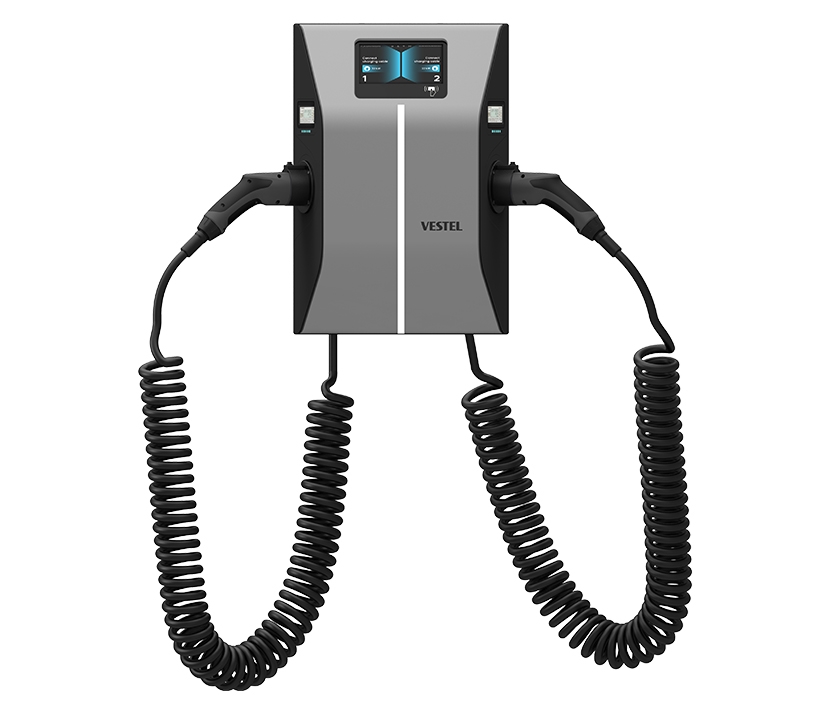

| Charging connector | Type 2 socket, shutter socket or type 2 spiral cable |
| Protection class | IP 54, IK 10 |
| Electrical Protection | RCD Type A, DC Sensor 6mA, MCB (2X 7.4 kW Version), RCBO (44 Kw Version), PEN (1-phase for UK region)(Optional) |
| Connectivity | Wifi, LAN, LTE (Optional) |
| IT backend connection | OCPP 1.6J |
| Meter | MID Meter (optional), Eichrecht Compliant (Optional) |
| Energy-/load management | Modbus TCP/ IP, OCCP |
| Authorisation | RFID, App, ISO 15118 Plug & Charge(Optional), OCCP |
| User Interface | 7'' Touch Screen, LED |
| Different Cabinets | - |
| Dimensions in mm (HxWxD) | 540 x640 x 315 mm |
| Environmental operating temperature | -25 °C to +50 °C |
