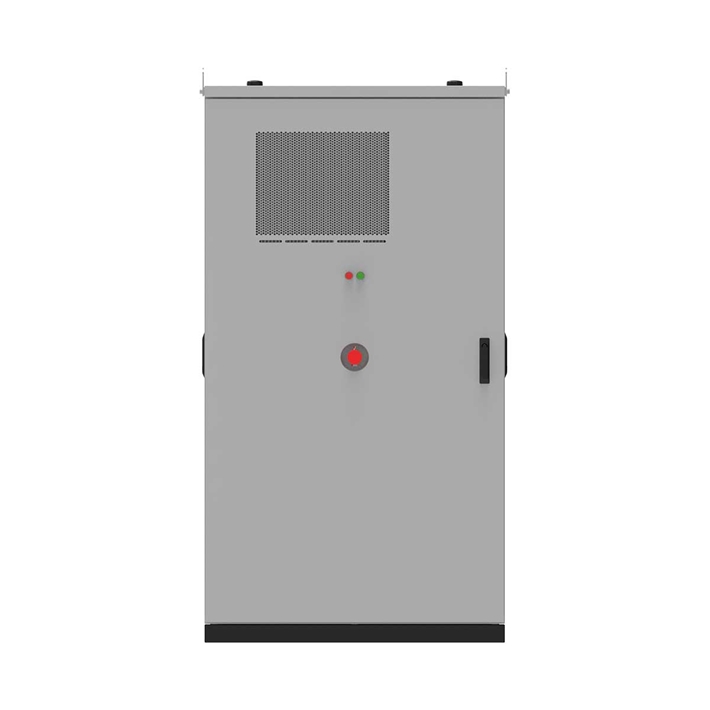

DC Stella 720 Power Unit

Over current, Over voltage, Under voltage, Short circuit, Over Temperature Internal Protections

Cooling: Forced Air Cooling Fan

Max. charging power per charging point	Max 720 kW
Input Rating	200 – 920 Vdc, 750 A per charging interface
Output Voltage	200 - 920 Vdc
Output Current	750 A
Noise Level	< 65 dBA avg. from 1m distance from front @25° C
IEC Protection Class	Class I
Internal Protections	RCBO Type-A for internal SELV circuit, Insulation monitoring for DC outputs , Over current / Over voltage / Under voltage / Short circuit / Over Temperature / Surge Protection (Type-1, Type-2)
Other Safety Features	Emergency Stop button (optional), Tilt sensor, Door Switches, Upstream Protection Trip (NC)
Built-in metering	DC meter in accordance with IEC 62052-11:2020
Power Sharing	Dynamic power allocation with 80 kW steps between sockets
