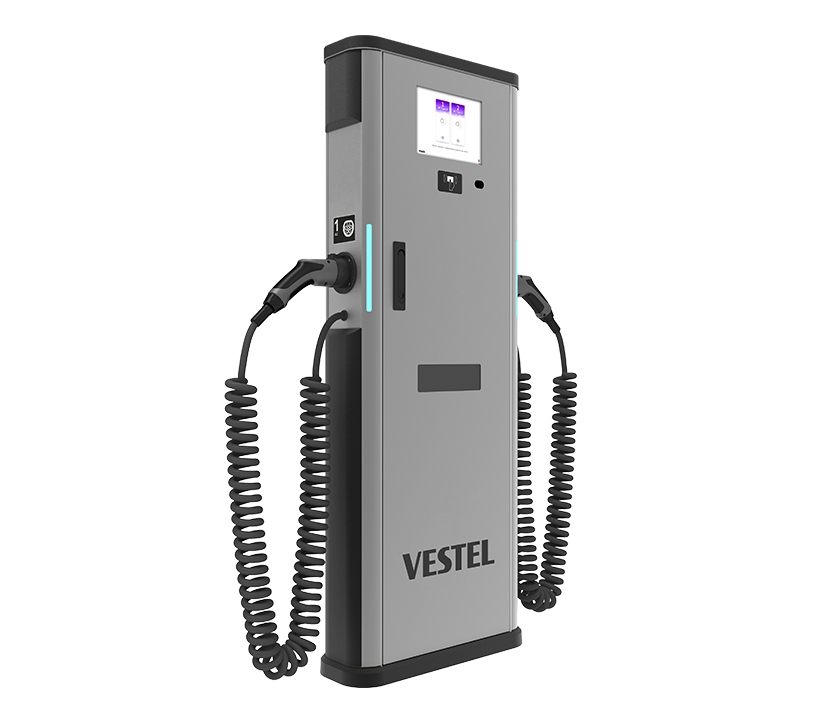

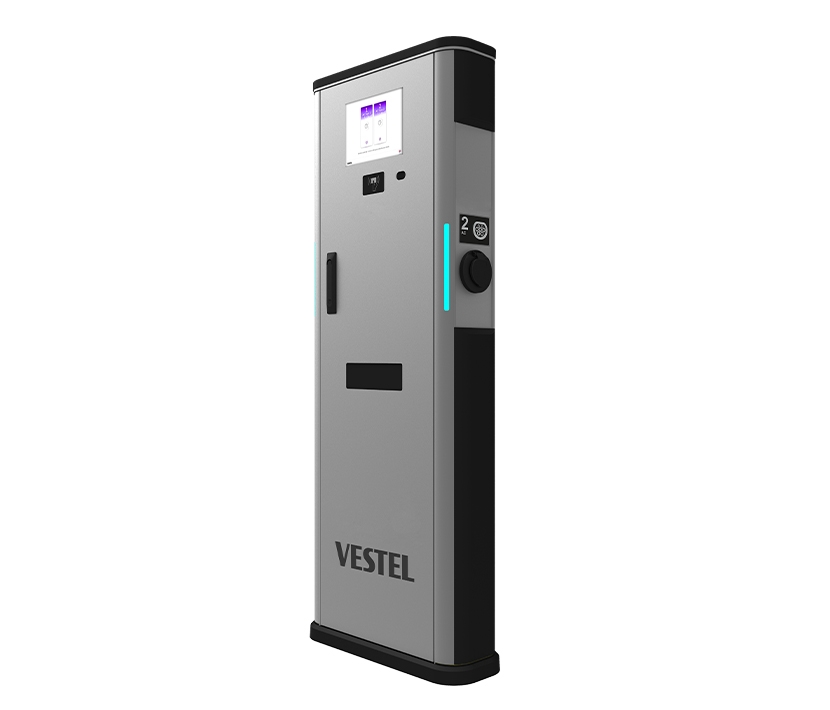

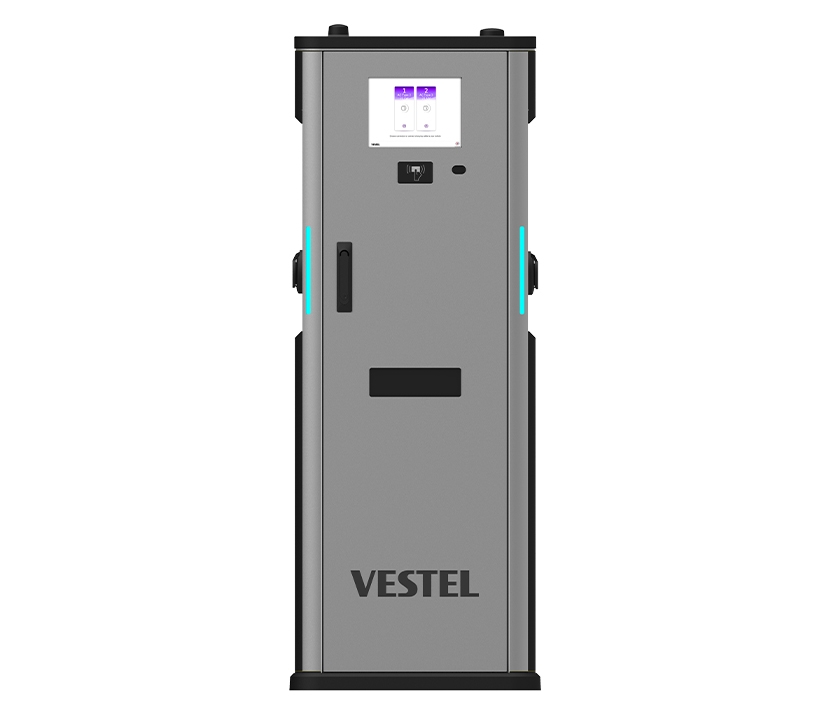

AC Rigel Dual 44
AC Rigel Duo 44 is robust and perfectly equipped for public spaces. With two charging points in a solid form, charging infrastructure can be set up quickly and cost efficiently.
AC Rigel Dual 44
AC Rigel Duo 44 is robust and perfectly equipped for public spaces. With two charging points in a solid form, charging infrastructure can be set up quickly and cost efficiently.
Up to 22 kW AC charging each charging socket
RFID activation already included in the basic configuration
Online via Cellular, WLAN and LAN
Easy installation and service
Vandal-proof metal body
Large display
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Max. charging output per charge point | Up to 22 kW |
| Charging connector | Type 2 Socket or Type 2 Spiral Cable |
| Protection class | IP 54, IK 10 |
| Electrical Protection | Main Circuit Breaker, RCD Type A, DC Sensor 6mA, Option for remote reclosure unit |
| Connectivity | Wifi, LAN, LTE |
| IT backend connection | OCPP 1.6J (OCCP 2.0.1 Upgradable) |
| Meter | MID Approved Meter |
| Energy-/load management | Via OCCP |
| Authorisation | RFID, App |
| User Interface | 10.4'' Touch Screen, LED |
| Different Cabinets | - |
| Dimensions in mm (HxWxD) | 1530 x575 x 205 mm |
| Environmental operating temperature | -25 °C to +50 °C |
