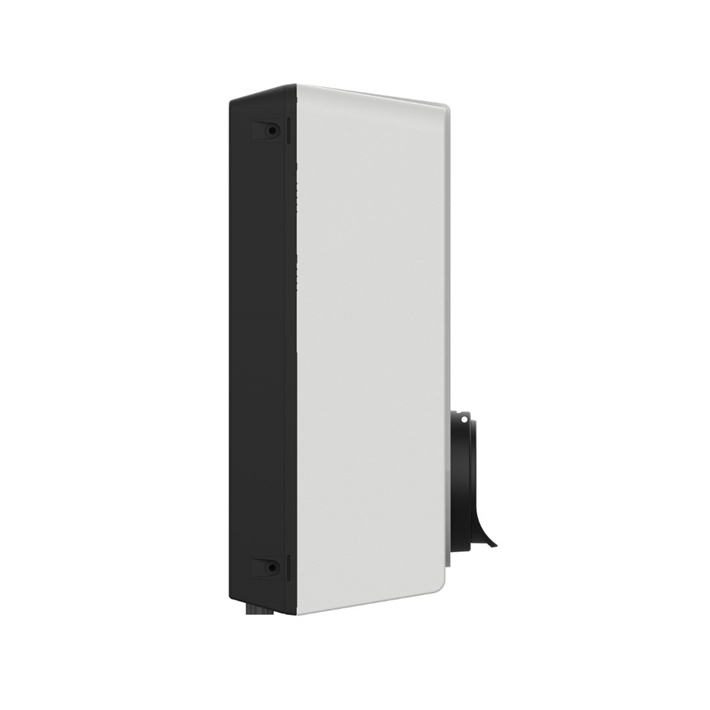

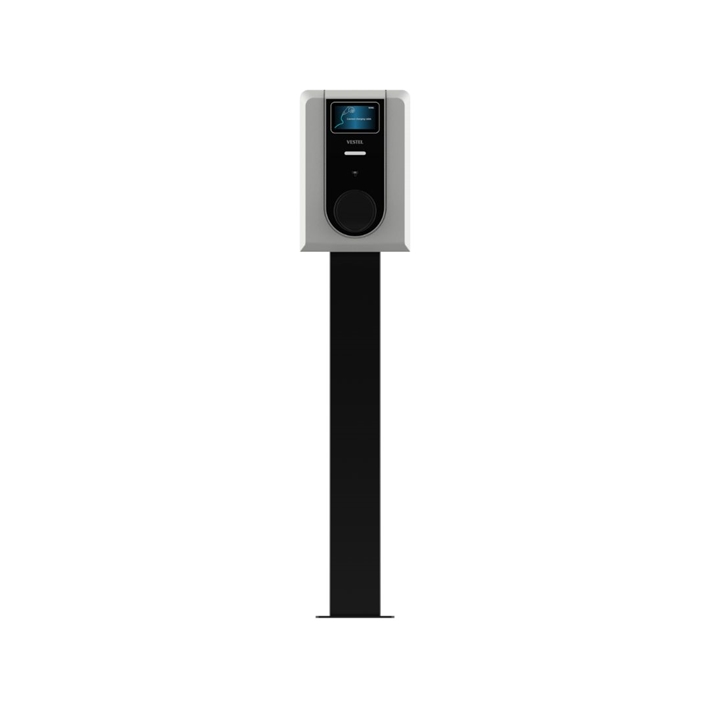

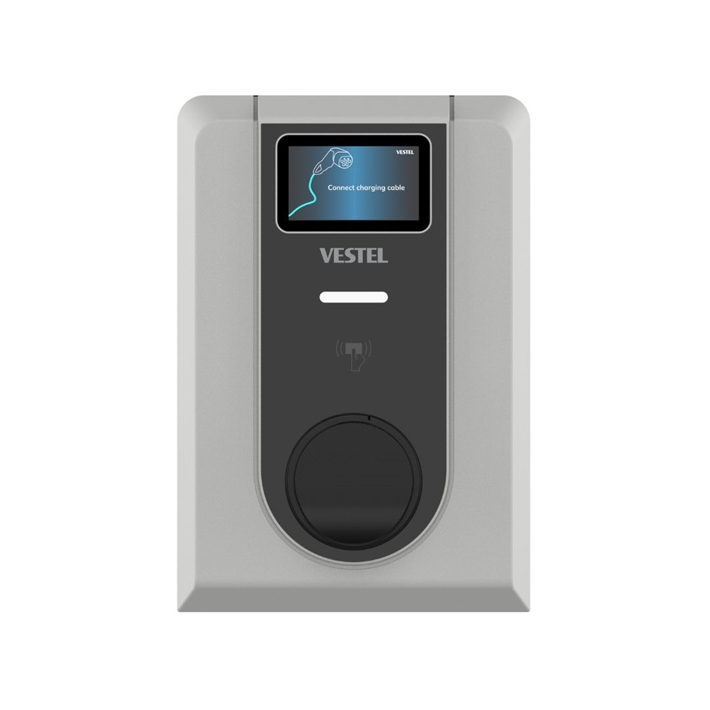

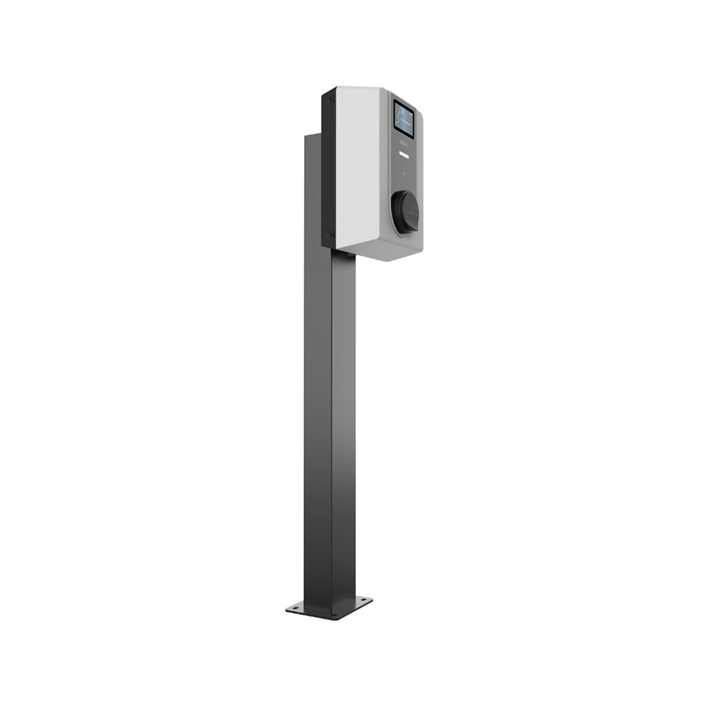

AC NewNow 7/11/22
Updated version of Rhea with more compact enclosure and new technologies. Thanks to ease of installation feature, Liveo and NewNow reduces installation durations significantly.
AC NewNow 7/11/22
Updated version of Rhea with more compact enclosure and new technologies. Thanks to ease of installation feature, Liveo and NewNow reduces installation durations significantly.
Up to 22 kW AC charging power for maximum charging speed with all Evs
ISO15118-2
German Calibration law, (Q2 2025)
On-board RCCB
Online via E-SIM, LTE, WLAN and LAN
Local And Remote Load Management Possible
High Secure Data Communication (For UK)
4.3”
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Max. charging output per charge point | Up to 22 kW |
| Charging connector | Type 2 Socket and cable, (5m and 7m), Type 2 Shutter Socket |
| Protection class | IP 54, IK 10 |
| Electrical Protection | On-board RCCB, DC Sensor 6mA |
| Connectivity | Wifi, LAN, 4G/5G (Optional), E-SIM (Optional) |
| IT backend connection | OCPP 1.6J (OCCP 2.0.1 Upgradable) |
| Meter | MID Meter (optional), Eichrecht Compliant |
| Energy-/load management | PPotential Free Contact, Modbus TCP/ IP, EEBUS, OCCP, Wifi |
| Authorisation | RFID, App, ISO 15118 Plug & Charge(Optional) |
| User Interface | 4.3'' TFT Screen (optional), LED |
| Different Cabinets | - |
| Dimensions in mm (HxWxD) | 383 x259 x191 mm |
| Environmental operating temperature | -25 °C to +50 °C |
